Sieving Machine

Overview

XUANYU Ultrasonic Sieving Machine is a high-precision, anti-clogging screening equipment independently developed by Henan Xuanyu Technology Co., Ltd., integrating ultrasonic technology with traditional vibrating screening technology. It is specially designed to solve the problems of screen clogging, low efficiency and poor precision when screening fine, ultra-fine powder and high-viscosity materials. Widely used in pharmaceutical, chemical, food, metallurgy, new materials, electronic materials and other industries, this machine provides efficient, precise and stable material classification, impurity removal and filtration solutions for high-standard production lines and laboratory research, especially suitable for screening materials with particle size below 200 meshes (0.075mm).

Working Principle

XUANYU Ultrasonic Sieving Machine adopts a dual-drive design combining a vertical vibration motor and an ultrasonic generator. The vertical vibration motor serves as the main excitation source, generating horizontal, vertical and inclined composite vibration through eccentric weights at the upper and lower ends, which drives materials to move in a regular involute trajectory on the screen surface, realizing preliminary screening. At the same time, the ultrasonic generator converts electrical energy into high-frequency ultrasonic vibration (20-40kHz), which is transmitted to the screen mesh through the ultrasonic transducer. This high-frequency micro-vibration makes the screen mesh produce rapid expansion and contraction, effectively preventing fine materials from adhering to the screen aperture and blocking the mesh.

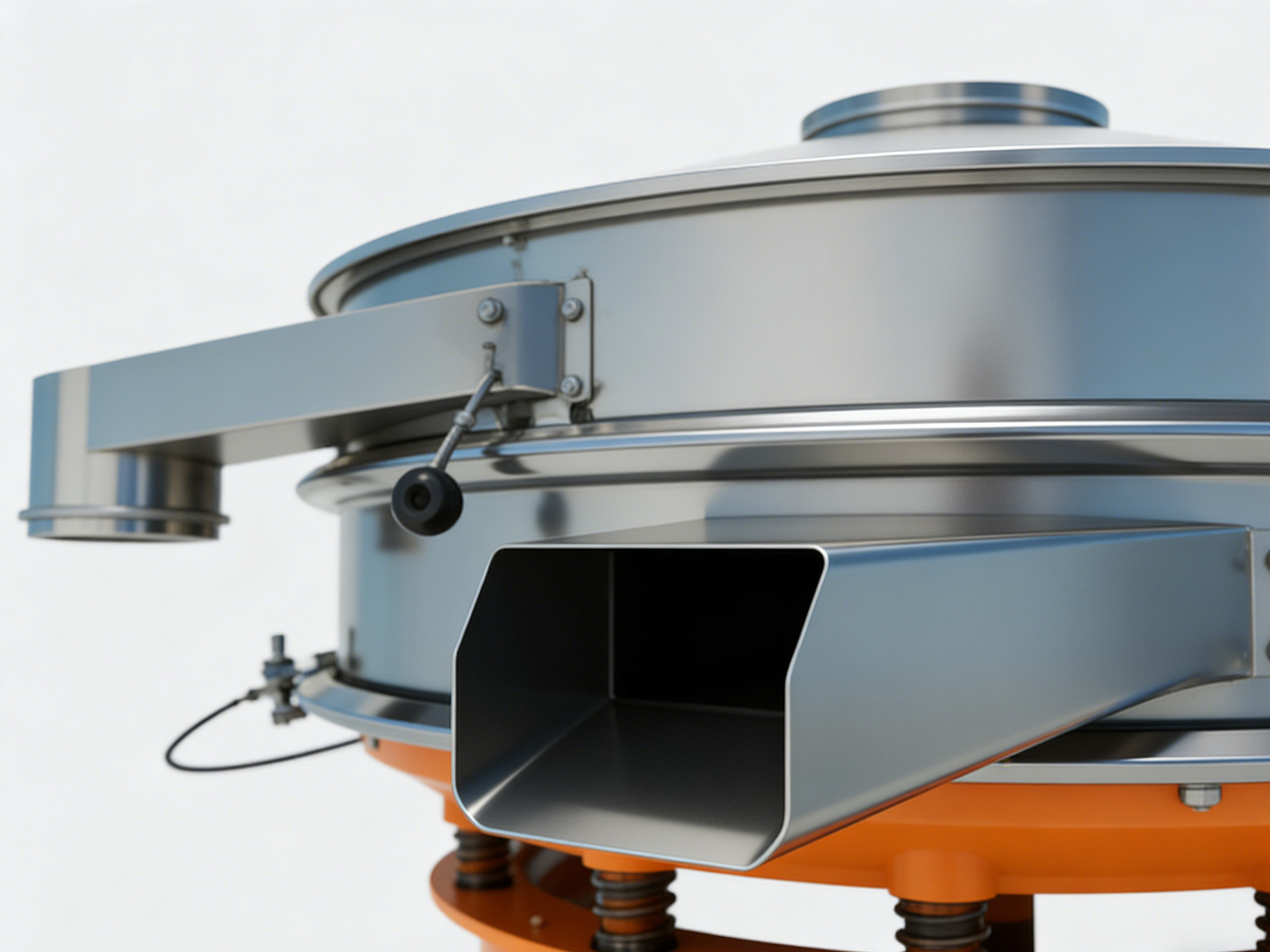

During the operation, materials larger than the screen aperture are discharged from the upper discharge port under the action of composite vibration, while materials smaller than the screen aperture pass through the screen mesh smoothly (without clogging) and fall to the lower layer or are directly discharged, completing the high-precision screening process. The vibration amplitude of the motor and the frequency of ultrasonic waves can be independently adjusted to adapt to different material properties (such as fineness, viscosity, humidity) and screening requirements.

Structural Features & Composition

The machine adopts an integrated structural design, with key components optimized for durability, precision and easy maintenance, ensuring stable operation and long service life while improving screening performance. Its main components and features are as follows:

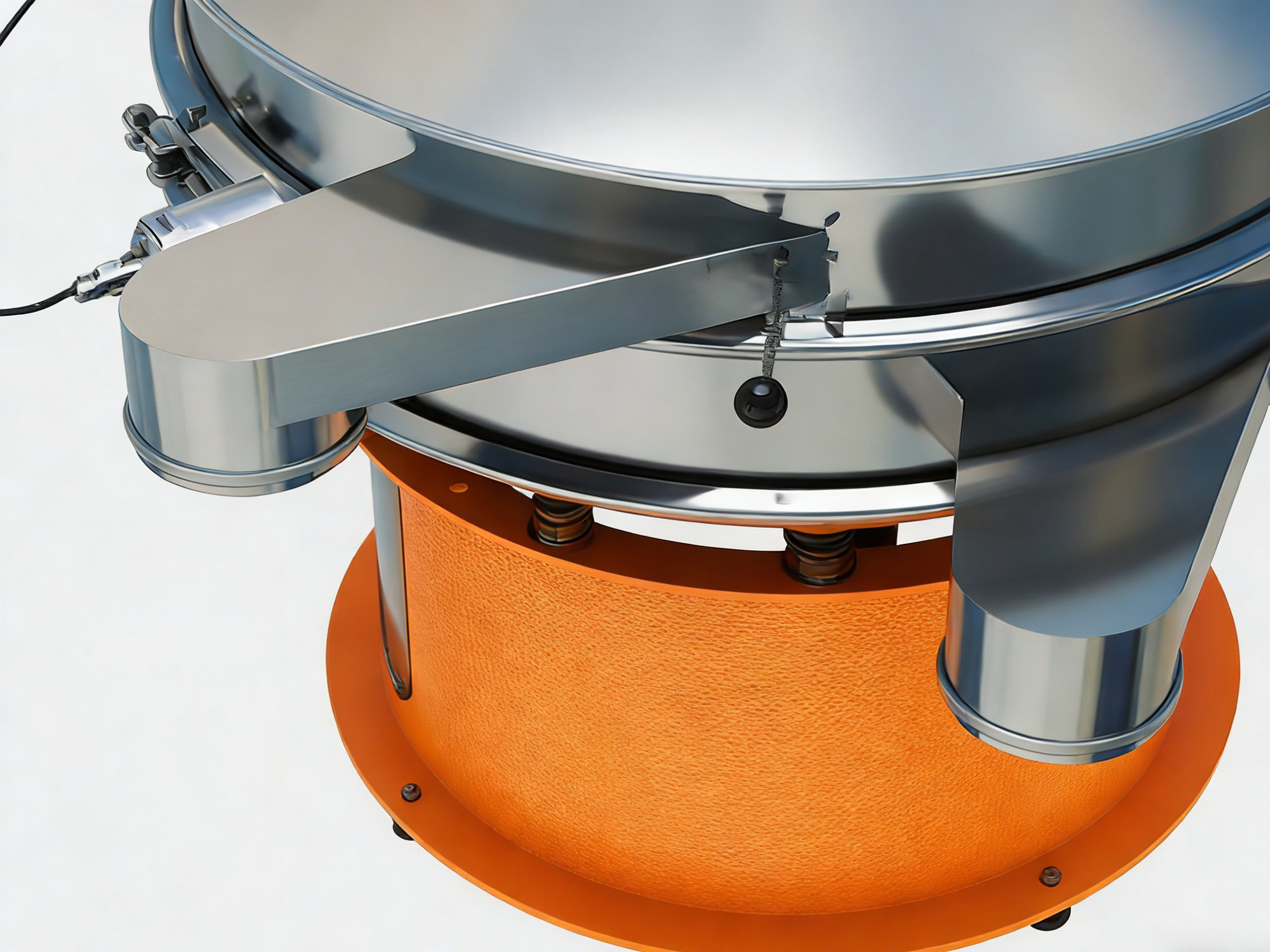

• Heavy-Duty Base: Made of high-strength steel plate, welded and formed, with strong bearing capacity and stable placement; equipped with shock-absorbing springs at the bottom to reduce the impact of vibration on the foundation and surrounding equipment.
• Vertical Vibration Motor: Core power component for main vibration, stable performance, low noise, low power consumption, and long service life; the phase angle of eccentric weights can be adjusted to change the material movement trajectory.

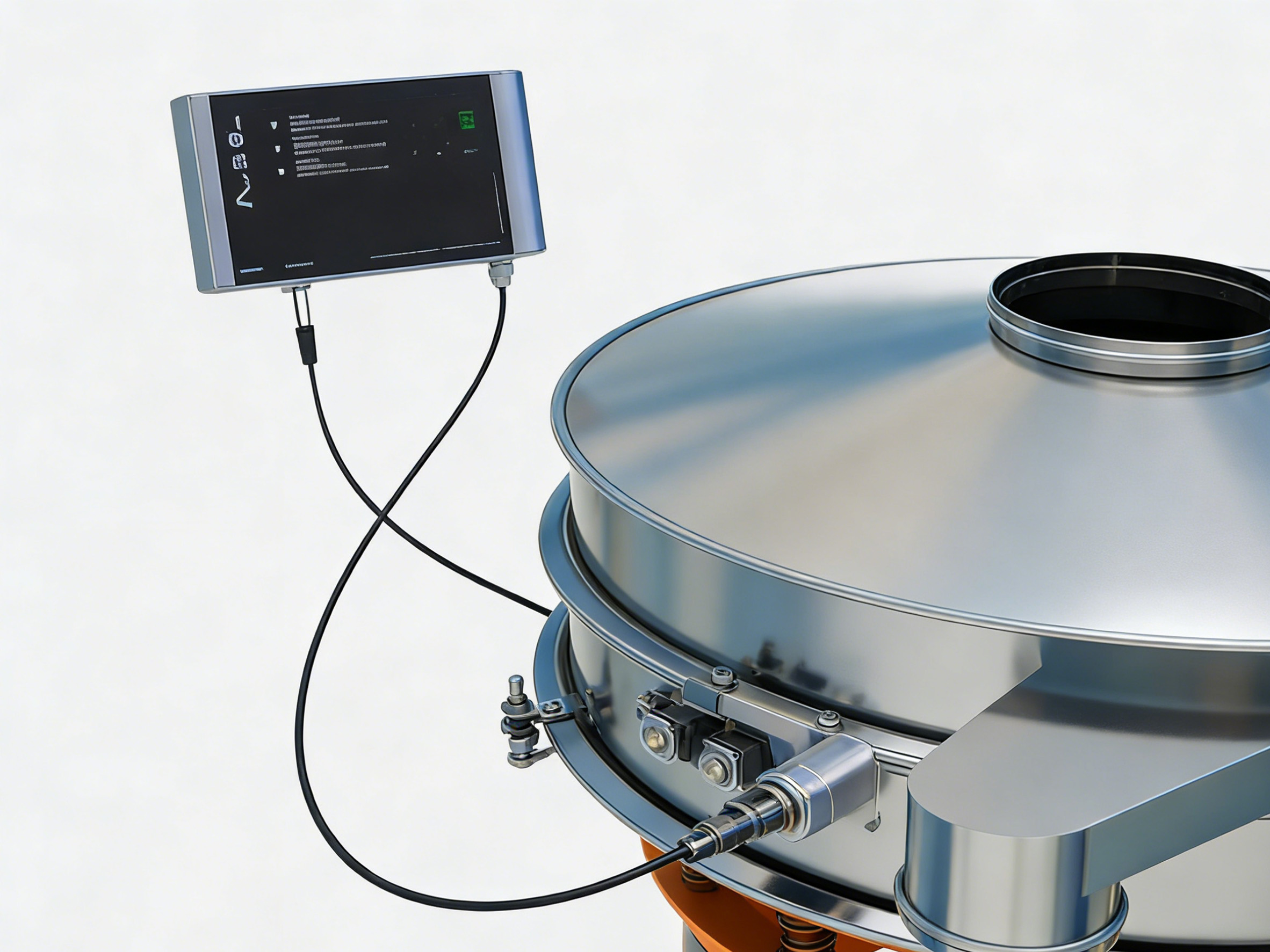

• Ultrasonic System: Including ultrasonic generator, ultrasonic transducer and ultrasonic screen frame, the core component to prevent screen clogging; high-frequency vibration is stable, energy-saving and efficient, and the frequency can be steplessly adjusted.
• High-Precision Screen Mesh: Commonly used 304/316L stainless steel woven mesh, nickel mesh or polyester mesh, optional aperture from 0.02mm (635 meshes) to 5mm, high screening precision, wear-resistant and corrosion-resistant; matched with ultrasonic system to extend service life by 3-5 times.

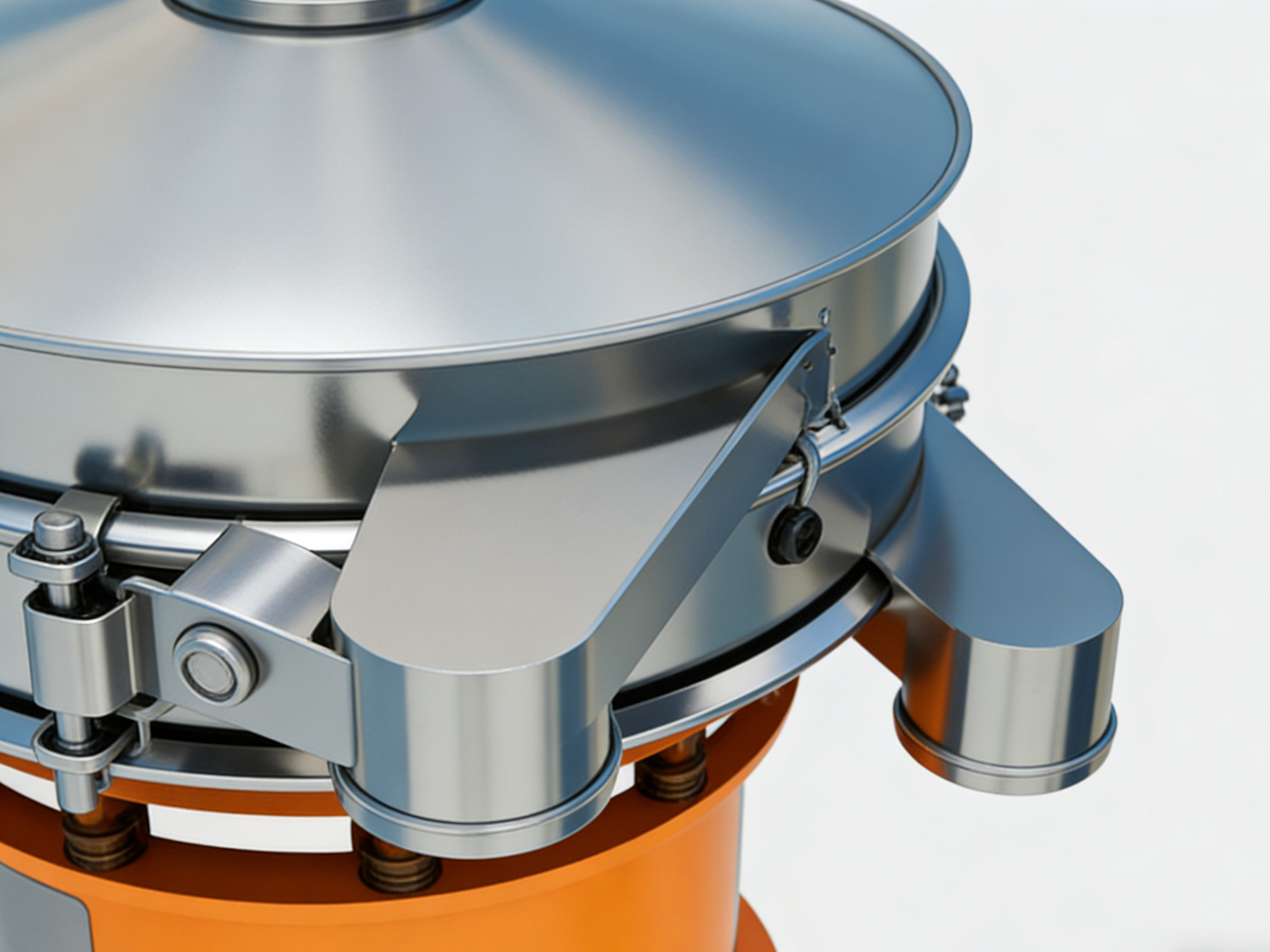

• Sealed Screen Frame: Detachable design, single-layer, double-layer or multi-layer optional, made of stainless steel, good sealing performance; easy to disassemble, clean and replace the screen mesh.

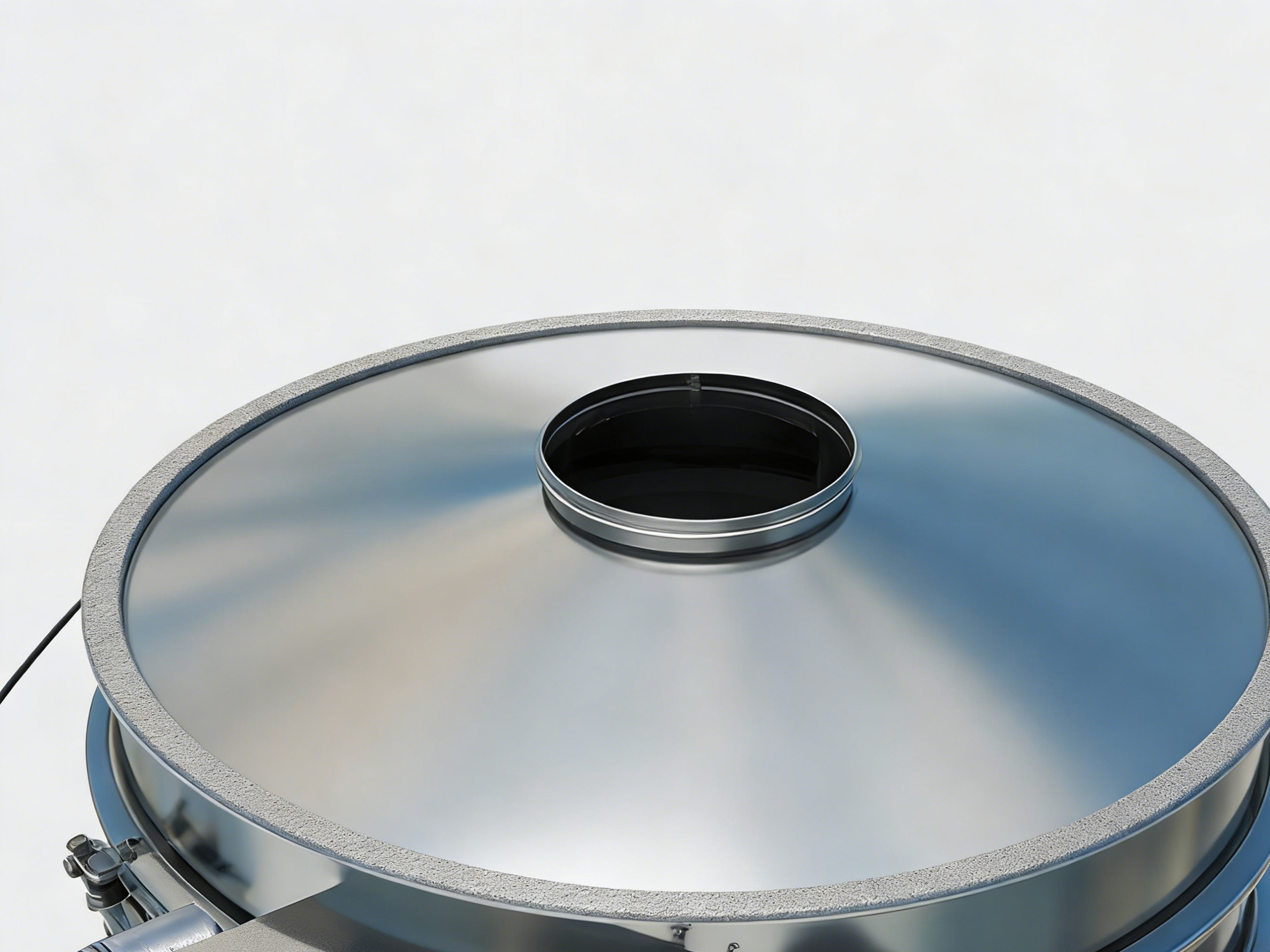

• Sealed Dust Cover: Stainless steel material, full-sealed structure, effectively preventing dust emission and material leakage, meeting environmental protection and hygiene standards (especially suitable for pharmaceutical and food industries).

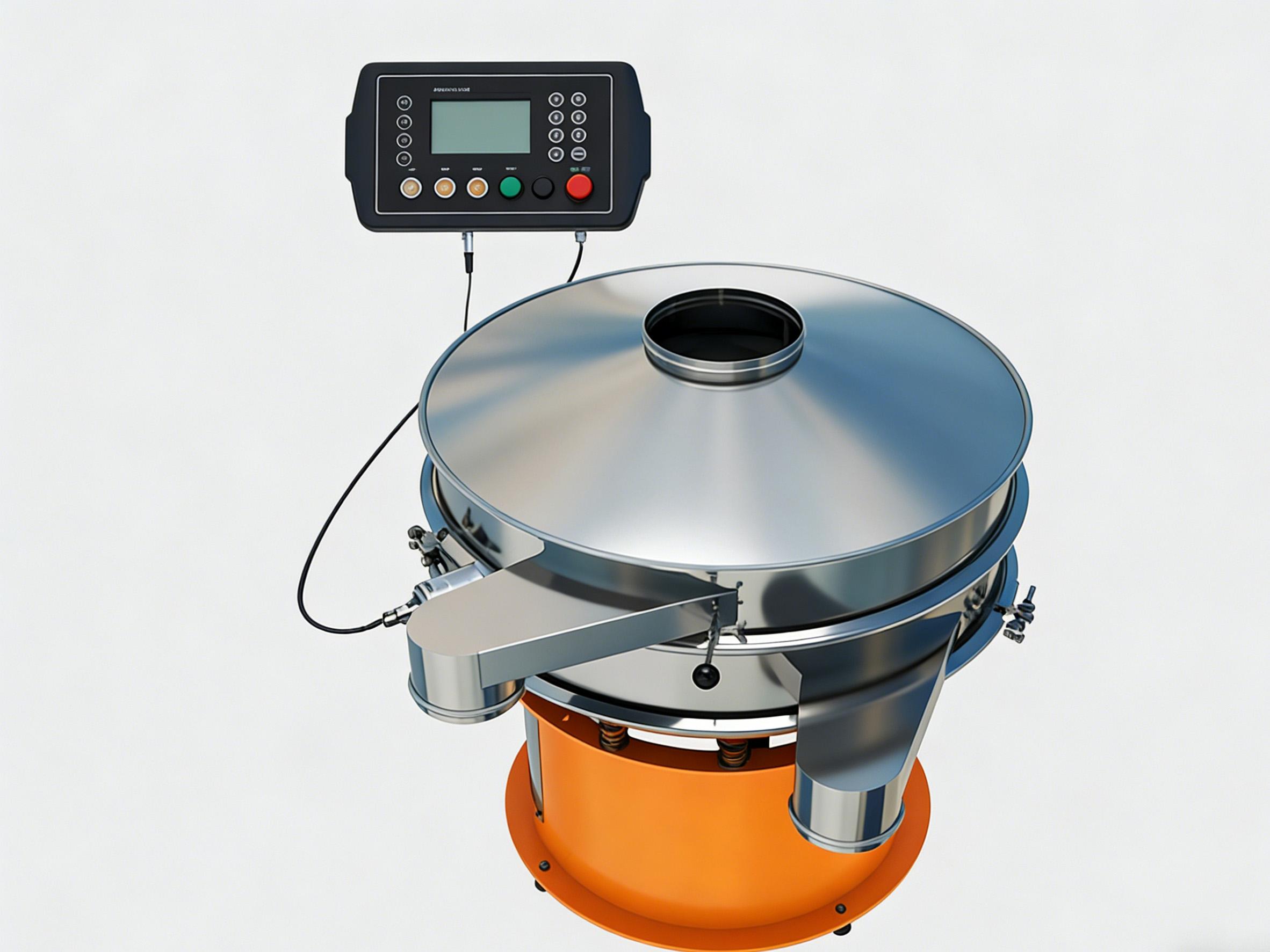

• Control Panel: Integrated design, easy to operate; equipped with independent switches for vibration motor and ultrasonic system, and knobs for adjusting vibration amplitude and ultrasonic frequency, with clear indicators.

Core Advantages

• Anti-Clogging & High Efficiency: The ultrasonic system generates high-frequency micro-vibration to completely solve the problem of screen clogging caused by fine powder adhesion, agglomeration and static electricity, with screening efficiency up to 98% (30%-50% higher than traditional sieving machines).
• Ultra-High Screening Precision: The combination of ultrasonic technology and composite vibration ensures that fine materials pass through the screen mesh smoothly, with screening precision up to 635 meshes (0.02mm), which can meet the high-precision screening requirements of ultra-fine powder materials.
• Wide Adaptability: Suitable for screening fine powder, ultra-fine powder, high-viscosity, high-humidity and electrostatic materials, such as talcum powder, graphite powder, pharmaceutical powder, metal powder, etc., which are difficult to screen by traditional equipment.
• Long Screen Mesh Service Life: High-frequency ultrasonic vibration reduces the friction and adhesion between materials and the screen mesh, avoiding damage to the screen mesh caused by forced screening, and extending the service life of the screen mesh by 3-5 times.
• Easy Operation & Maintenance: Integrated control panel, simple operation; detachable screen frame and screen mesh, screen change can be completed in 3-5 minutes; the ultrasonic system has no易损 parts, and daily maintenance only needs regular cleaning.
• Energy Saving & Low Noise: The ultrasonic system adopts energy-saving design, low power consumption (ultrasonic power 50-300W); the vibration motor operates stably, with low noise (≤70dB), creating a quiet and energy-saving working environment.
• Compliant with Industry Standards: Full-sealed structure, in line with GMP, FDA and other industry standards; parts in contact with materials are made of food-grade or pharmaceutical-grade stainless steel, ensuring product hygiene and safety.

Application Scenarios

• Pharmaceutical Industry: Screening of western medicine powder, Chinese medicine superfine powder, pharmaceutical excipients, antibiotic powder, etc., ensuring product purity and particle size uniformity, complying with GMP standards.
• Chemical Industry: Screening of ultra-fine pigment, dye, resin powder, graphite powder, talcum powder, calcium carbonate powder, etc., avoiding agglomeration and clogging, ensuring product quality consistency.
• Food Industry: Screening of milk powder, soybean milk powder, cocoa powder, pollen, tea powder, ultra-fine food additives, etc., meeting food hygiene standards and improving product taste and quality.
• Metallurgical & New Materials Industry: Screening of metal powder (copper powder, aluminum powder, iron powder), rare earth powder, ceramic powder, carbon fiber powder, etc., providing qualified raw materials for production.
• Electronic & Battery Industry: Screening of electronic powder, battery material powder (lithium battery positive and negative electrode powder), etc., ensuring the uniformity and purity of materials, improving product performance.
• Laboratories & R&D Institutions: High-precision screening and testing of small-batch ultra-fine materials, suitable for scientific research, formula debugging and small-scale trial production.

Technical Parameters (Customizable)

Model	Screen Diameter (mm)	Number of Layers	Mesh Size (mm)	Capacity (kg/h)	Motor Power (kW)	Ultrasonic Power (W)	Weight (kg)
XY-600	600	1-3	0.02-5	100-800	0.75-1.5	50-100	120
XY-800	800	1-3	0.02-5	200-1500	1.5-2.2	100-200	180
XY-1000	1000	1-4	0.02-5	300-2500	2.2-3.0	150-300	250

Customization Services

In order to meet the diverse and high-standard needs of different customers, XUANYU provides personalized customization services for ultrasonic sieving machines:

• Ultrasonic System Customization: Customize ultrasonic frequency (20-40kHz) and power according to material fineness and viscosity, solving special clogging problems.
• Material Customization: The parts in contact with materials can be made of 316L stainless steel, PTFE and other materials to meet the requirements of corrosion resistance, high temperature resistance and high hygiene level.
• Screen Mesh Customization: Customize screen meshes of different materials (stainless steel, nickel, polyester) and apertures (0.02-5mm) according to the particle size of the screened materials.
• Structural Customization: Design single-layer, double-layer or multi-layer screen frames according to the number of material classification levels; customize the overall size and capacity according to the installation space and production demand.
• Special Function Customization: Equip with anti-static device, screen cleaning device, heating device, etc., adapting to special material screening needs; add automatic feeding and discharging device to realize automated operation.

After-Sales Support

XUANYU is committed to providing customers with comprehensive and thoughtful after-sales services to ensure the stable and efficient operation of equipment:

• Provide a one-year free warranty service, during which damaged parts (excluding man-made damage) are replaced free of charge, including the ultrasonic system and vibration motor.
• 24-hour online technical consultation, timely solve the problems encountered by customers in the process of use, including equipment operation, maintenance and fault handling.
• Provide on-site installation and commissioning services, and conduct professional training for operators to ensure the correct use and daily maintenance of the equipment.
• Long-term supply of wearing parts (screen mesh, shock-absorbing spring, etc.) and ultrasonic system accessories at preferential prices to ensure the continuous operation of equipment.

XUANYU Ultrasonic Sieving Machine, with its unique anti-clogging design, ultra-high precision and efficient performance, breaks through the technical bottleneck of traditional sieving equipment in fine powder screening, becoming the ideal choice for high-standard screening scenarios in various industries, helping customers improve production efficiency, reduce costs and enhance product competitiveness.
