Sieving Machine

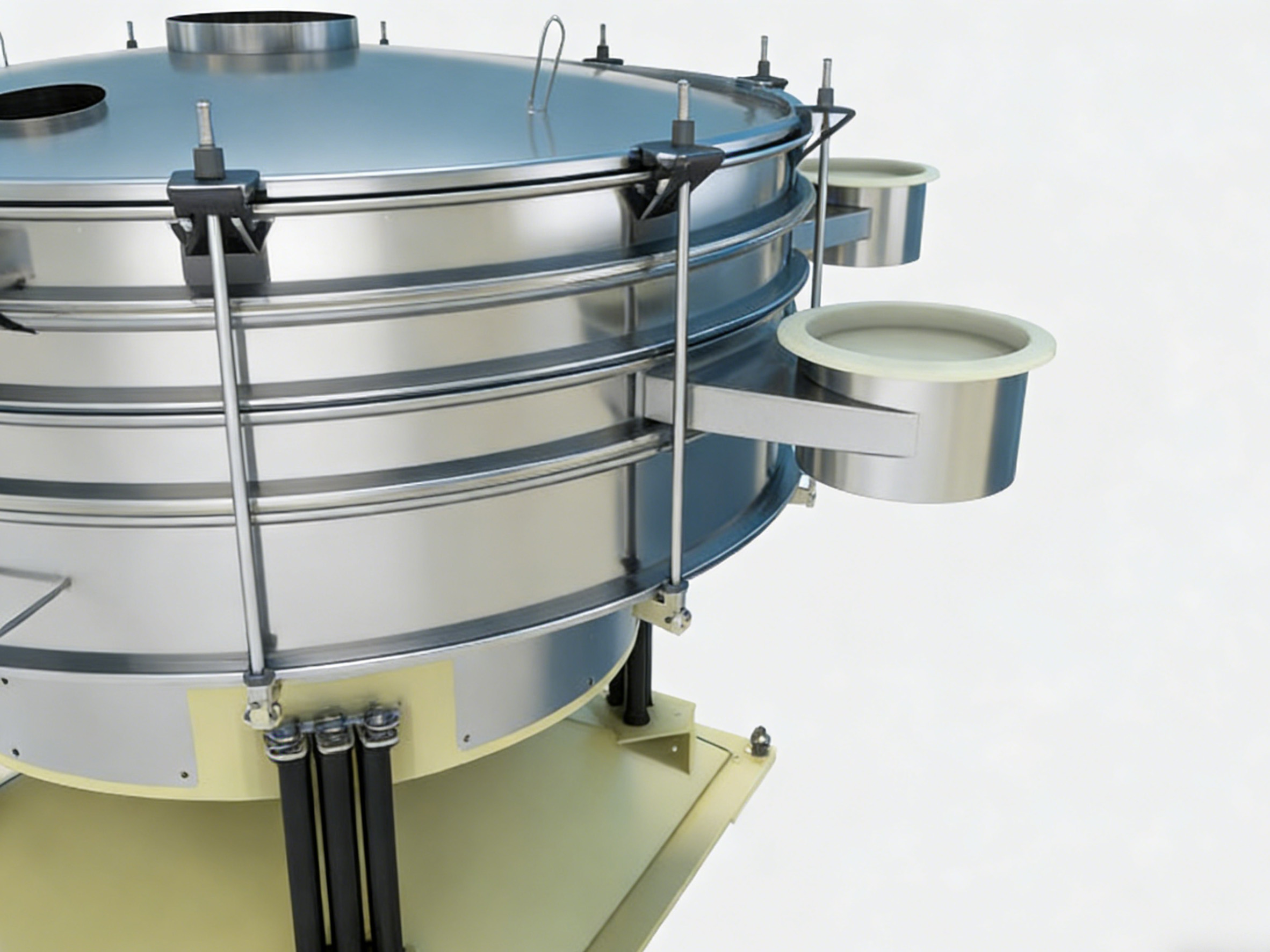

XUANYU Tumbler Sieve is an innovative inertial screening equipment meticulously engineered to simulate manual sieving with exceptional precision and efficiency. It integrates plane circular motion and upward parabolic motion, enabling materials to undergo three-dimensional spiral tumbling from the center to the edge of the screen surface, ensuring uniform dispersion and thorough separation.

Core Advantages

• Unrivaled Screening Precision: Achieves screening efficiency of 90% – 95%, with separation accuracy up to 99% for fine particles as small as 20 microns, significantly outperforming traditional vibrating screens.
• Gentle Material Handling: The acceleration is 4.5 times lower than conventional vibrating sieves, minimizing material degradation and extending the service life of screen meshes by 5-10 times.

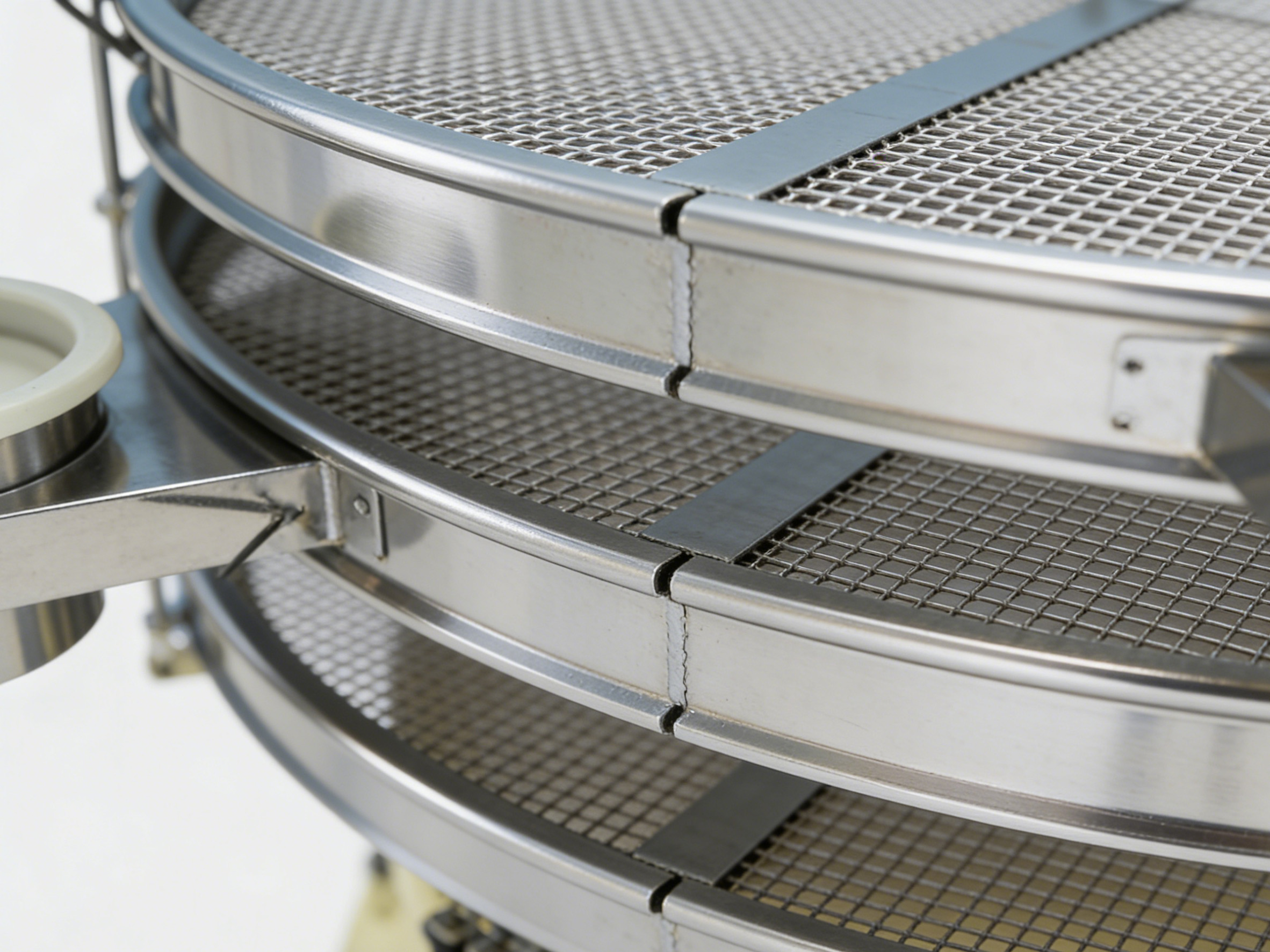

• High Throughput: Delivers up to 5 times the output per unit area compared to standard sieves, with 1-5 sieve decks available to separate up to 6 particle sizes simultaneously.
• Cost-Efficient Operation: Features low energy consumption, reduced noise levels, and excellent sealing to prevent dust emissions, ensuring a safe and economical working environment.

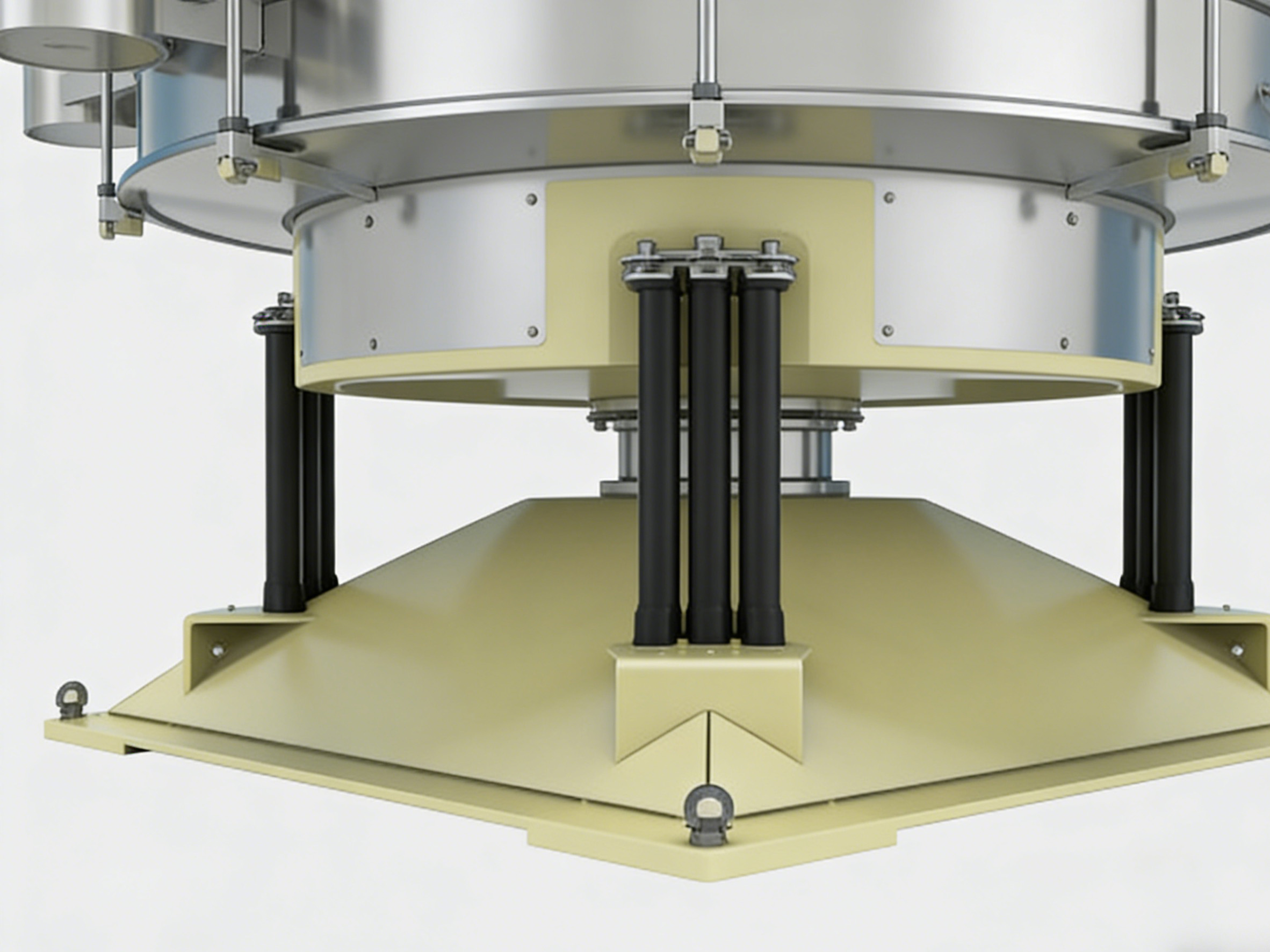

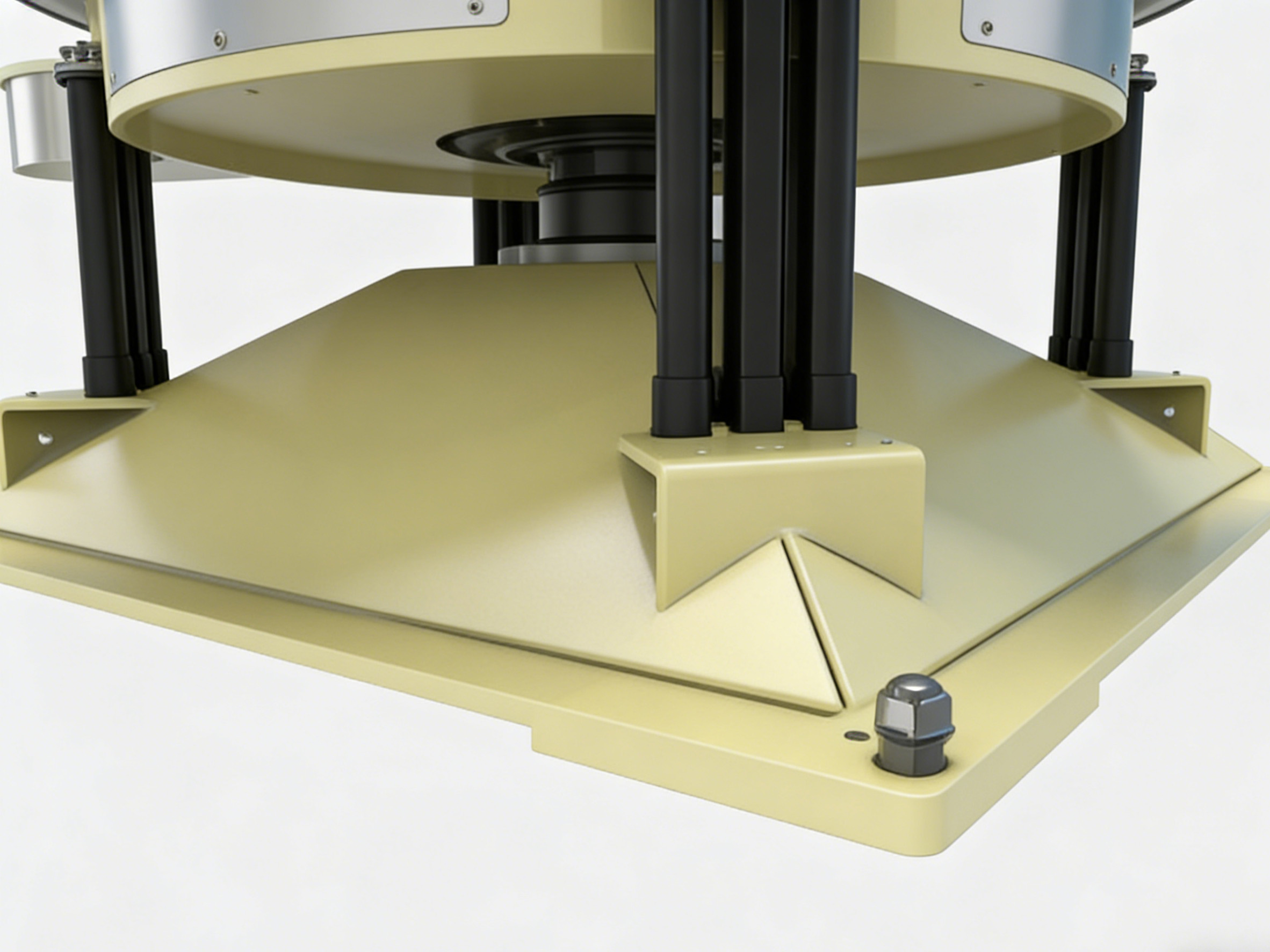

• Durable and Low Maintenance: Robust construction with smart mesh stabilization for secure installation and rapid replacement, reducing downtime and operational costs.

Technical Specifications

表格

Model	Diameter (mm)	Sieving Area (m²)	Power (kW)	Amplitude (mm)	Deck Layers	Capacity (t/h)
XTS-600	600	0.29	1.5	3-5	1-3	0.5-3
XTS-1000	1000	0.71	2.2	3-6	1-4	3-8
XTS-1200	1200	1.11	3.0	3-6	1-4	5-12
XTS-1600	1600	1.83	4.0	4-7	1-5	8-20
XTS-2000	2000	2.62	5.5	4-7	1-5	12-30
XTS-2400	2400	3.63	7.5	5-8	1-5	18-45

Working Principle

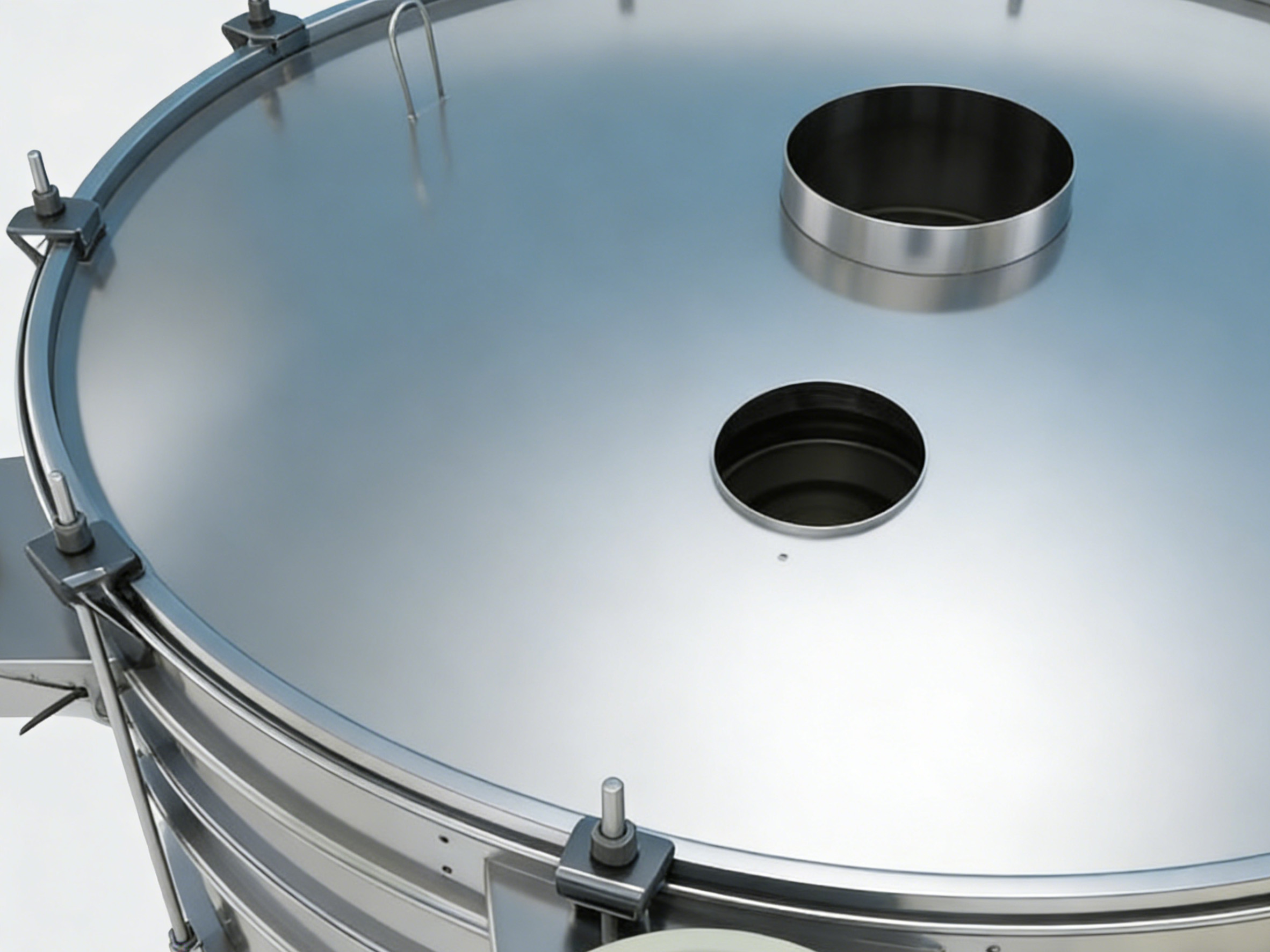

The XUANYU Tumbler Sieve operates on a non-linear inertial vibration principle, combining horizontal circular motion with vertical parabolic motion to create a spiral tumbling effect. Materials are fed into the center of the screen, where they are evenly distributed across the mesh surface. Fine particles pass through the screen layers, while oversized particles move to the edge for discharge. This gentle yet effective motion ensures optimal separation without material damage.

Applications

Ideal for dry and wet screening of fine powders and granular materials in industries such as:

• Mining and Minerals: Ore, alloy powder, abrasive materials.
• Chemicals: Resins, pigments, coatings, pharmaceuticals.
• Food Processing: Sugar, starch, milk powder, rice flour.
• Construction Materials: Cement, sand, gravel, refractory materials.

Customization Options

• Material Construction: Carbon steel, stainless steel (304/316) for corrosion resistance.
• Screen Cleaning Systems: Bouncing balls, ultrasonic, brush, or water cleaning for different materials.

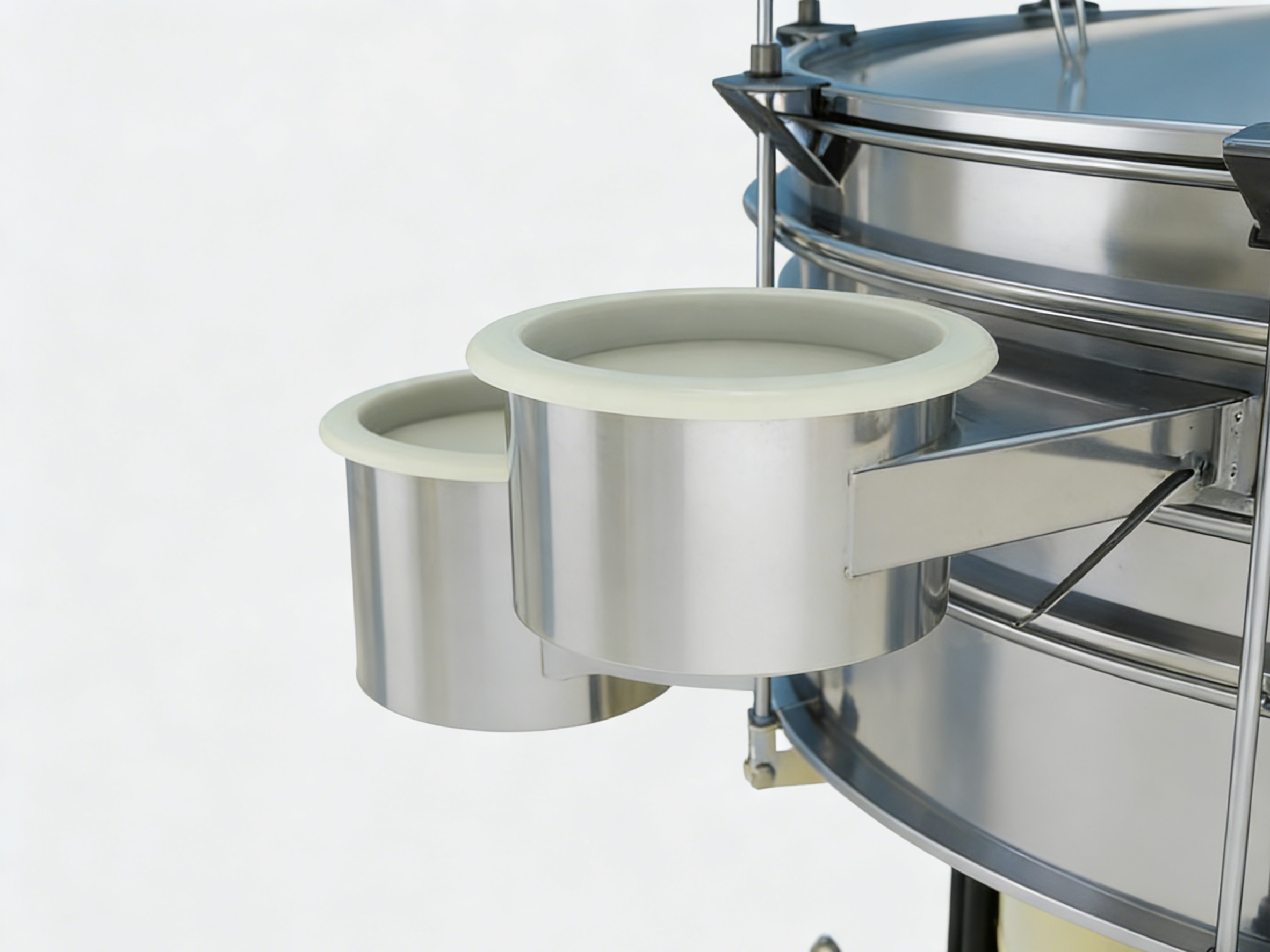

• Inlet/Outlet Configurations: Customizable to integrate with existing production lines.
• Control Systems: Frequency inverters for adjustable motion parameters to suit specific material requirements.

XUANYU Tumbler Sieve stands as a reliable solution for high-precision screening, offering unmatched efficiency, durability, and versatility for diverse industrial needs.
