Sieving Machine

XUANYU Rectangular Sieve is a high-efficiency, heavy-duty screening equipment specially designed for large-scale industrial material classification, grading, and impurity removal. Featuring a unique rectangular structure, it maximizes the effective screening area, enabling continuous and stable operation with high throughput, making it an ideal choice for bulk material processing in various industries.

Core Features & Advantages

• Large Effective Screening Area: The rectangular design provides 30%-50% larger effective screening area compared to circular sieves of the same size, significantly improving throughput and screening efficiency, which is suitable for large-batch material processing.

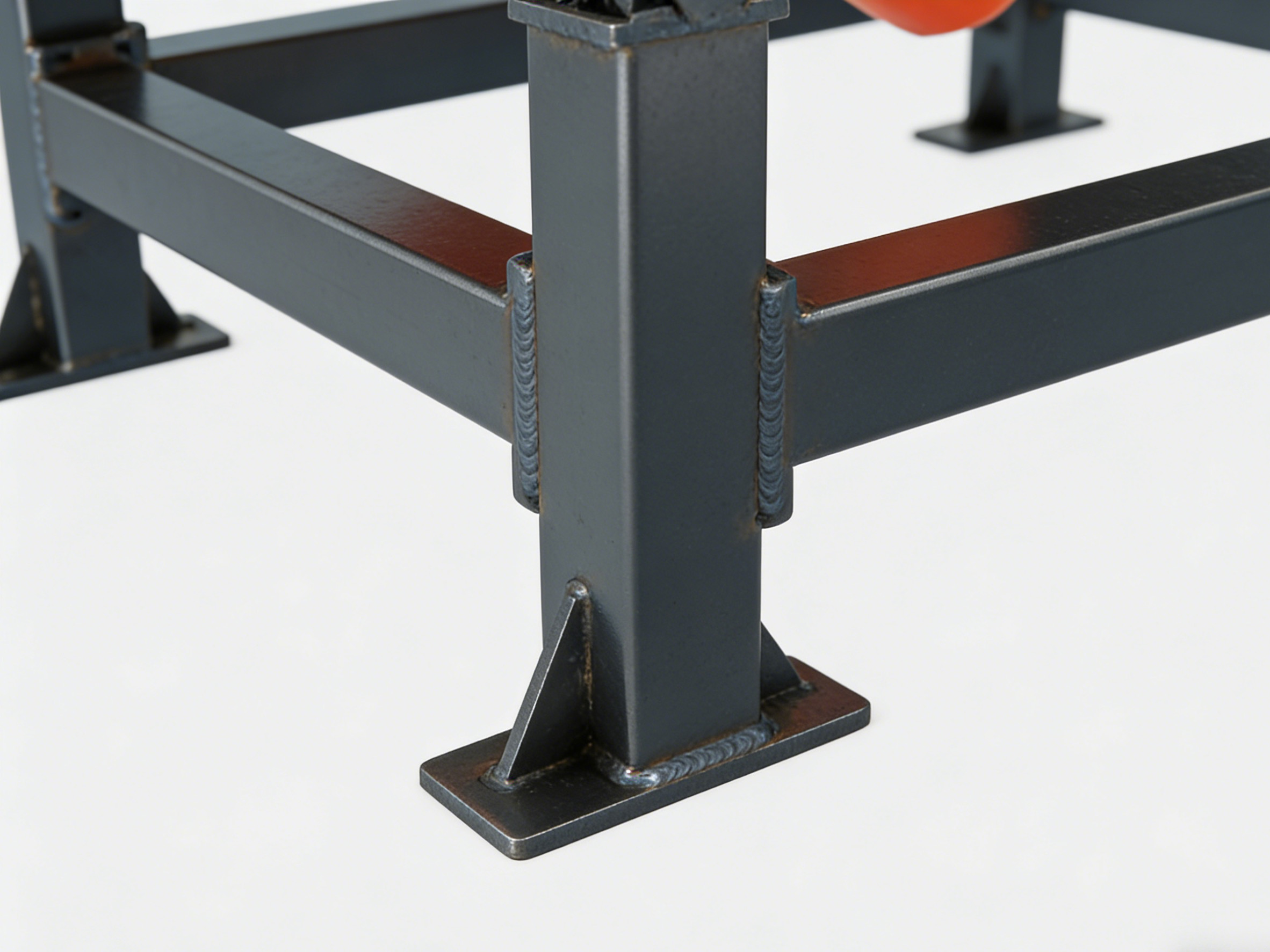

• Stable & Durable Construction: Adopts a rigid steel frame structure with reinforced side plates and beam design, enhancing stability and load-bearing capacity. The whole machine is treated with anti-corrosion and anti-rust coating, ensuring long service life even in harsh industrial environments (high temperature, high humidity, dusty conditions).

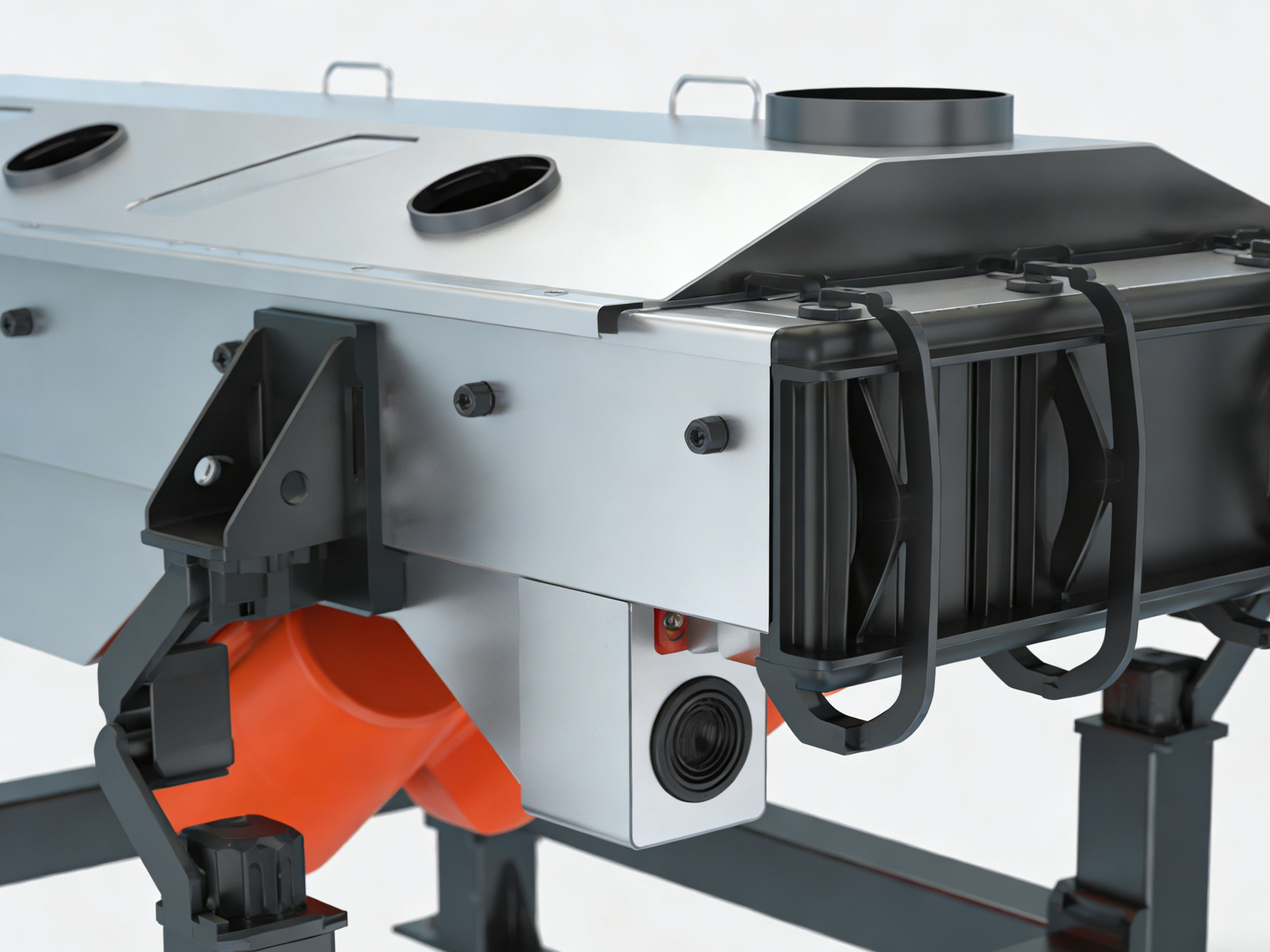

• Adjustable Vibration Parameters: Equipped with high-performance vibration motors, the amplitude, frequency, and vibration direction can be customized according to material characteristics (particle size, humidity, viscosity), avoiding material blocking and ensuring thorough screening.

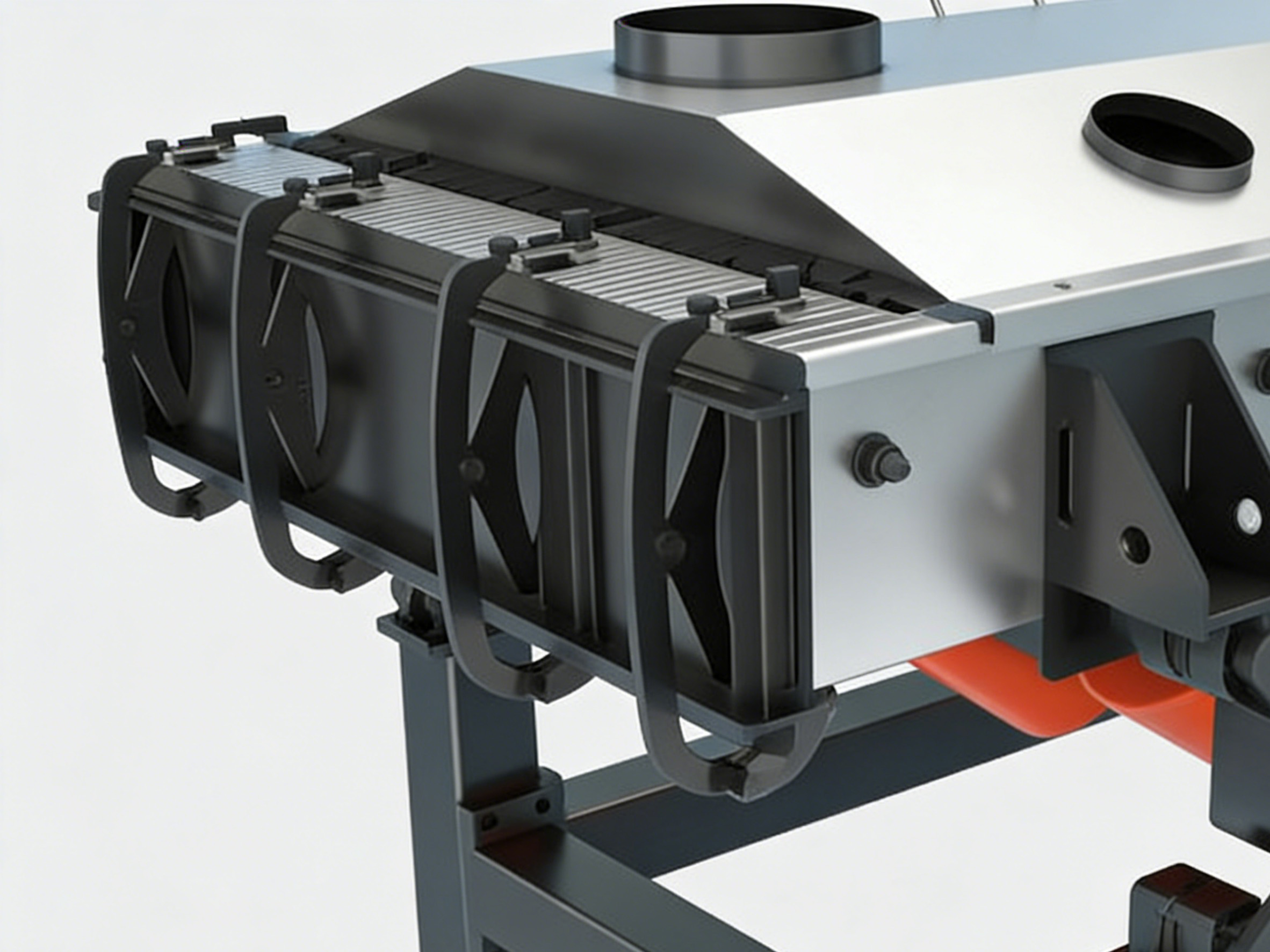

• Easy Maintenance & Replacement: The screen mesh is fixed with a quick-release clamp or bolt connection, enabling fast mesh replacement without professional tools. The open-type structure facilitates cleaning, maintenance, and inspection, reducing downtime and operational costs.
• Flexible & Versatile: Available in single-layer, double-layer, or multi-layer designs, it can separate 2-5 particle sizes simultaneously. The inlet and outlet can be customized according to on-site installation space and production line layout, ensuring seamless integration with existing equipment.
• Energy-Saving & Low Noise: Optimized vibration system design reduces energy consumption by 20%-30% compared to traditional rectangular sieves. The built-in shock absorption device effectively reduces noise (≤75dB), creating a comfortable and safe working environment.

Technical Specifications

Model	Screen Size (L×W, mm)	Mesh Size Range (μm)	Power (kW)	Capacity (t/h)	Deck Layers
XRS-1020	1000×2000	40-5000	2.2-3.0	5-15	1-2
XRS-1224	1200×2400	40-5000	3.0-4.0	10-25	1-3
XRS-1530	1500×3000	40-5000	4.0-5.5	20-40	1-3
XRS-1836	1800×3600	40-5000	5.5-7.5	35-60	1-4
XRS-Custom	Customizable	Customizable	Customizable	Customizable	Customizable

Working Principle

XUANYU Rectangular Sieve operates based on the principle of linear vibration. The vibration motor drives the sieve body to produce high-frequency linear vibration, making materials move forward in a parabolic trajectory on the screen surface. During the movement, fine particles pass through the screen mesh to complete classification, while coarse particles or impurities continue to move forward along the screen surface and are discharged from the tail outlet. The adjustable vibration parameters ensure that different types of materials can be screened efficiently, avoiding mesh blocking and improving screening accuracy.

Applications

Widely used in bulk material screening, grading, and impurity removal in various industrial fields, including:

• Mining & Metallurgy: Screening ore, coal, metal powder, tailings, and other mineral materials, realizing classification and impurity removal to improve product quality.
• Construction Materials: Screening sand, gravel, cement, concrete aggregates, refractory materials, and ceramic raw materials, meeting production process requirements.
• Agriculture & Grain Processing: Screening grains, seeds, feed, and agricultural by-products, removing impurities and grading by particle size.
• Chemical & Pharmaceutical: Screening chemical powders, pigments, resins, pharmaceutical intermediates, and other materials, ensuring product uniformity and purity.
• Food Processing: Screening flour, starch, sugar, salt, and other food raw materials, removing impurities and grading to meet food safety standards.
• Waste Treatment: Screening construction waste, domestic waste, and industrial waste, realizing resource classification and recycling.

Customization & After-Sales Service

We provide personalized customization services to meet your specific production needs: custom screen size, mesh size, deck layers, power, and material of the sieve body (carbon steel, 304/316 stainless steel). All XUANYU Rectangular Sieves undergo strict quality inspection before leaving the factory, with a 1-year warranty and lifelong technical support. Our professional after-sales team provides on-site installation, commissioning, and maintenance guidance to ensure the stable operation of your equipment.

XUANYU Rectangular Sieve integrates high efficiency, durability, and flexibility, providing reliable screening solutions for your industrial production, helping you improve production efficiency and reduce operational costs.
