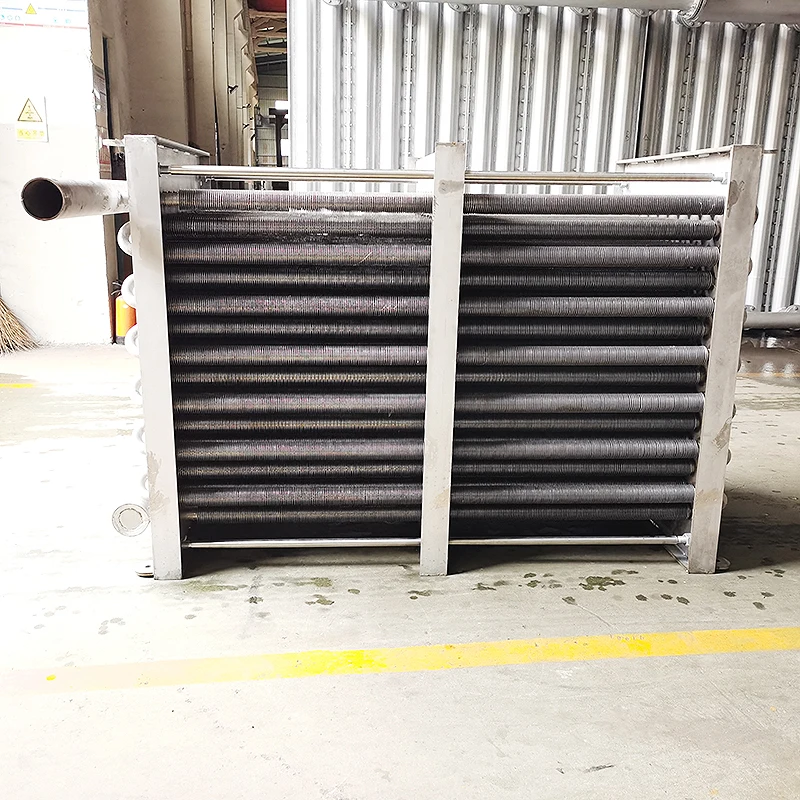

Finned Tube Heat Exchanger

Finned Tube Heat Exchanger is one of Our Main Products.

Finned tubes consist of thin fins wrapped over the tubes to increase the heat transfer area. Straight tube or finned tube product design can be made according to the purpose of use and ambient conditions. It is wound in a certain thickness, height and pitch according to the tube diameter determined as a result of the necessary calculations according to the process requirement and the heat transfer requirement.

Advantages of Finned Tube Heat Exchanger :

1.Energy Efficiency: 30-50 Percent higher efficiency achieved by optimized tube-to-fin contact maximizes heat transfer.
2.Compact System Design: Small footprint fits tight mechanical spaces and equipment cabinets
3.Stable Thermal Performance: Maintains consistent operation under continuous high load conditions.

4.Custom Dimensions: Coil dimensions fin density and tube layout can be tailored to project needs.

5.Reliable Manufacturing Quality: Precision brazing and strict leak testing ensure long term reliability

Heat Exchanger Tubes:• Title goes here
• Stainless Steel
• Carbon Steel
• Alloy Steel
• Copper-Nickel Alloy
• Titanium
• Hastelloy or Other Special Materials

Fin Types:

• Flat Fin
• Louvered Fin
• Serrated Fin
Different coatings are applied based on the specific application and corrosion conditions. Coils can be manufactured with fins made of copper, hydrophilic coating, hydrophobic coating, or gold epoxy coating. Tin coating is also available upon customer request.

Heat Exchanger Plate & Frame:

• Thick. 1 – 3 mm
• Galvanized steel
• Aluminium
• Stainless steel
• Copper
• Brass

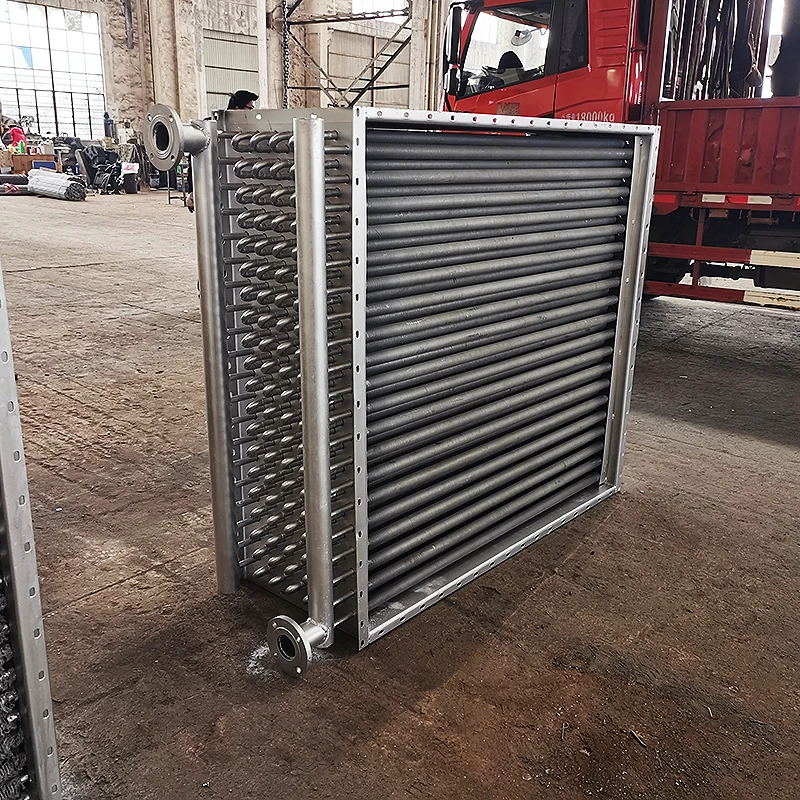

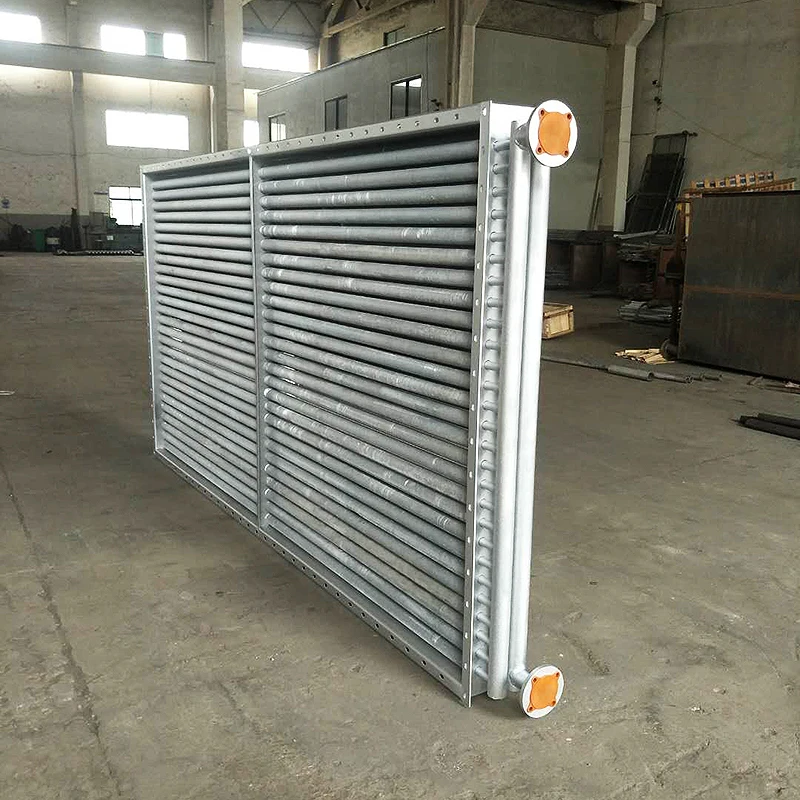

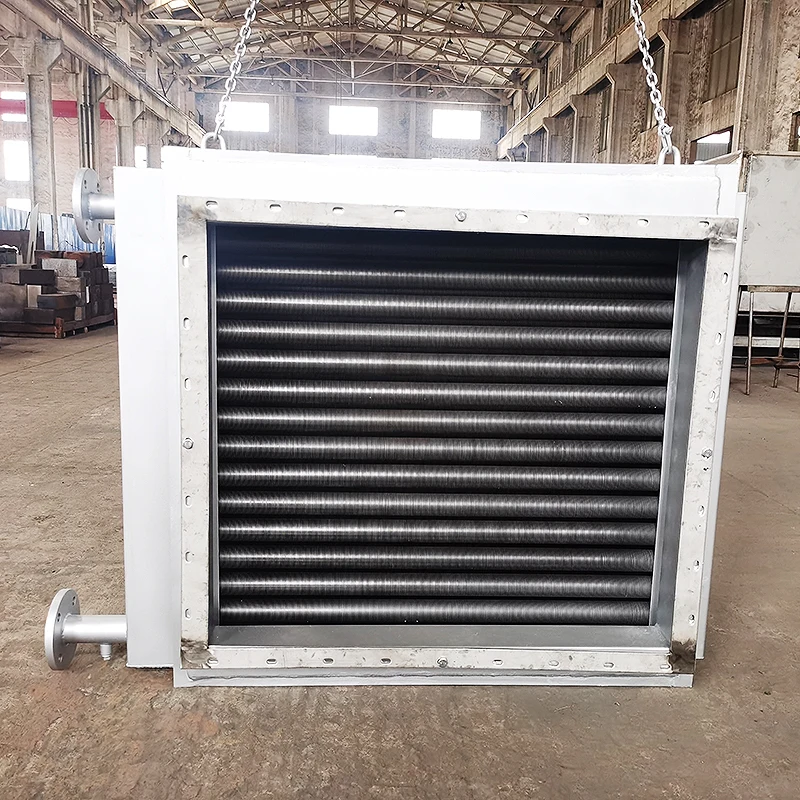

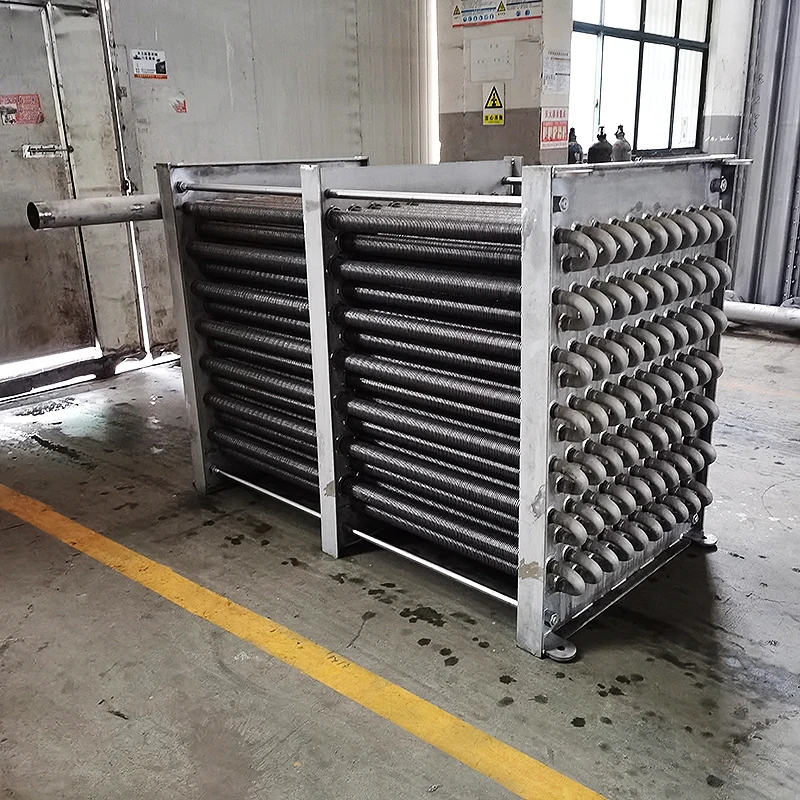

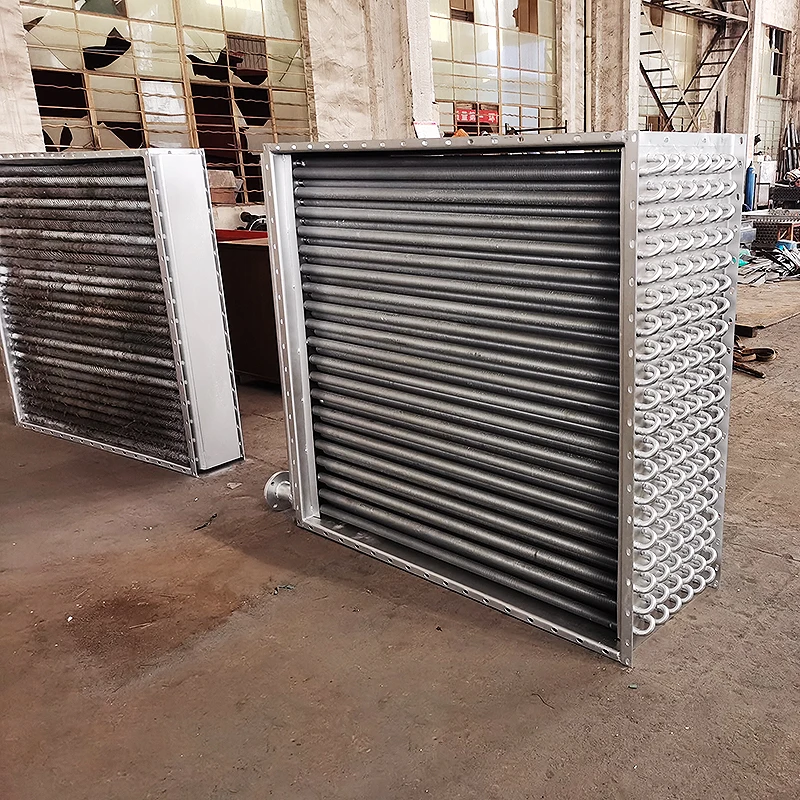

Get to Know the Finned Tube Heat Exchanger:

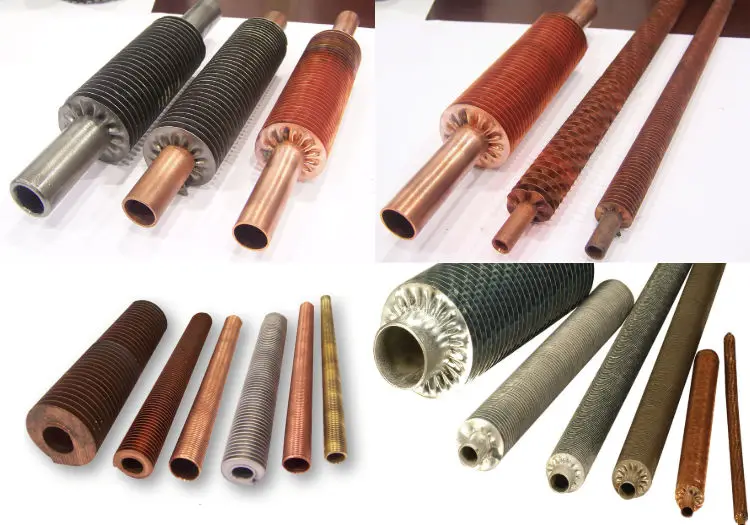

The L/LL/KL configuration refers to the shape of the fins on the tube. L-shaped fins have a flat top and a tapered base, while LL-shaped fins have a double-conical structure with a groove to increase the holding force between the fins and the base tube.KL-shape fins are similar to L-shape fins, but with a serrated body to widen the contacts between the fins and the base tube.

In the G configuration, a finned tube type in which the fin is mechanically embedded in a groove towards the inside of the tube and
that groove is locked in place by forcing rollers at the top of the blade centre.

L/LL/KL finned tubes are widely used in air-cooled heat exchangers such as radiators, evaporators and condensers, as well as in
industrial process heating and cooling applications.

L finned tubes, LL (Double L) finned tubes, KL finned tubes (knurled fin tubes) (with aluminum fins)The aluminum fin strip or the
copper fin strip is folded into an L shape and spirally wound tightly under the action of tension on the outer surface of the base
tube. Tension in the fin strip is wrapped around the tube serves to make the fin foot forcefully on the tube, thus hold the fin
firmly in place.
Superior Heat Transfer Coefficient: Uniquely designed fins continuously disturb the fluid boundary layer, effectively increasing the heat transfer coefficient. This, combined with ultra-thin, high-conductivity fins, ensures the equipment achieves industry-leading high efficiency and significant energy savings.

Space Optimization: Utilizing extended secondary heat transfer surfaces, our tube-fin exchangers achieve an ultra-compact structure. Heat transfer area density can reach up to $1000 m^2$ per cubic meter, ensuring maximum capacity in minimal space.

Significant Weight Advantage: The compact structure and high-strength aluminum alloy construction drastically reduce unit weight,lowering freight costs and simplifying on-site installation. Models in steel, copper, and composite materials are also mass-produced to meet custom material specifications.

Multi-Fluid Adaptability: Easily applies to Gas-Gas, Gas-Liquid, Liquid-Liquid, and Phase-Change heat transfer. Our flow path
design supports complex conditions like Counter Flow, Cross Flow, and Multi-Pass flow.

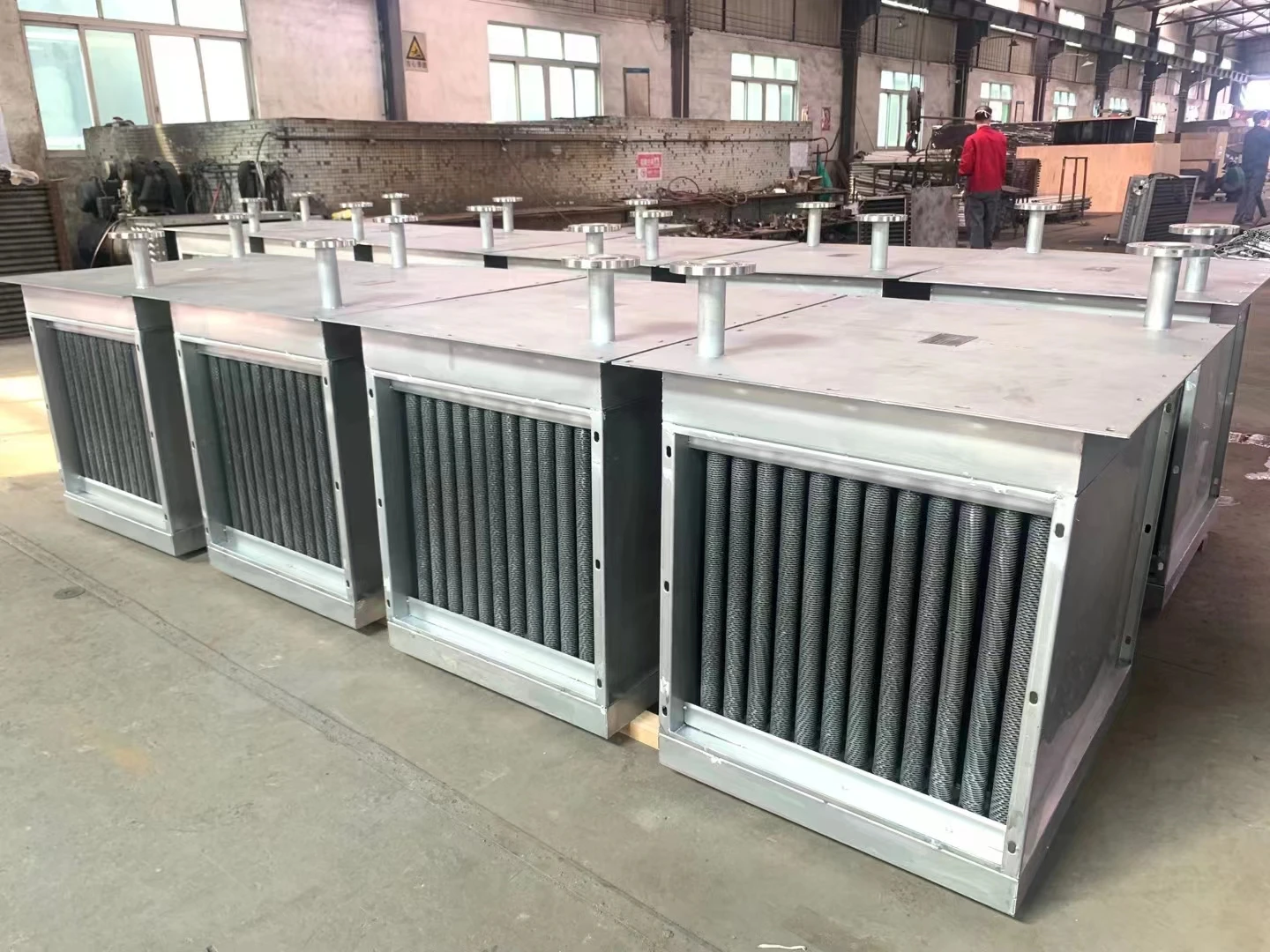

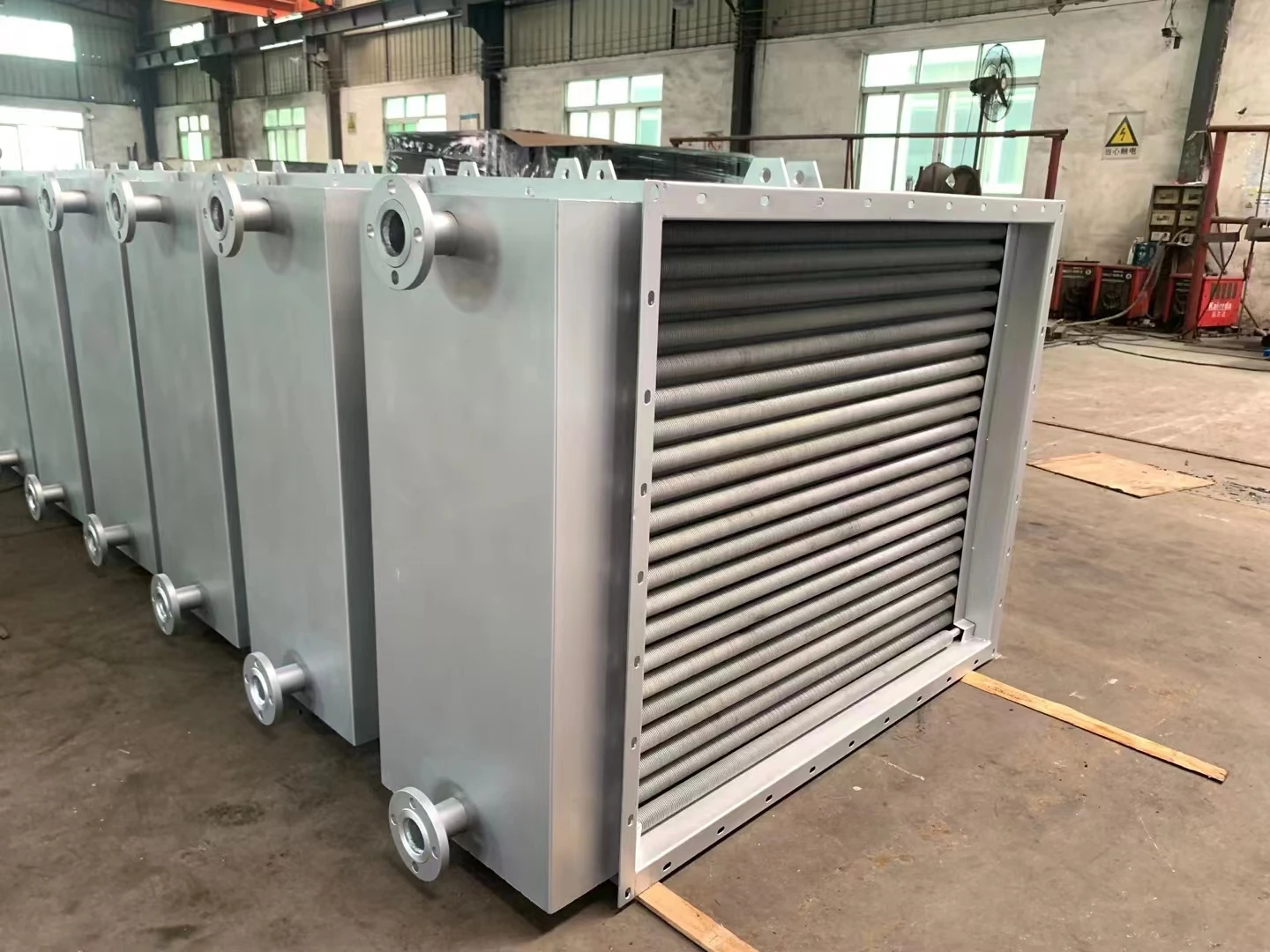

America Project

Vietnam Project

France Project

Singapore Project

Canada Project

Philippines Project

Russia Project

Vietnam Project

Thailand Project

Professional Applications of Finned Tube Heat Exchanger :

1.Chemical Reactors – Precise Feed Gas Preheating

2.Industrial Hydraulic Systems – Hydraulic Oil Cooling

3.Lubricating Oil Systems – Oil Temperature Control

4.Petrochemical Processing – Crude Oil Preheating

5.Power Generation – Turbine Lube Oil Cooling

6.HVAC & Refrigeration – Chilled Water Condensing

7.Food & Beverage – Pasteurization & Sterilization

8.Waste Heat Recovery – Thermal Energy Utilization

9.And more…

Industry Coverage & Product Offerings:

We supply a comprehensive portfolio of heat exchangers serving the industrial, food & beverage, HVAC, marine, air handling and cooling, petrochemical, power generation, and refrigeration sectors.

Finned Tube Heat Exchangers units are available in both direct-replacement models (100% compatible with OEM specifications) and fully customized configurations engineered to meet specific application requirements.

Engineering Design

We exclusively utilize HTRI and EDR design software from a renowned European software provider.

With 18 years of strategic partnership, we have successfully designed, manufactured, and exported heat exchangers to over 50 countries worldwide.

Customer feedback consistently confirms that actual cooling performance aligns precisely with theoretical design values.

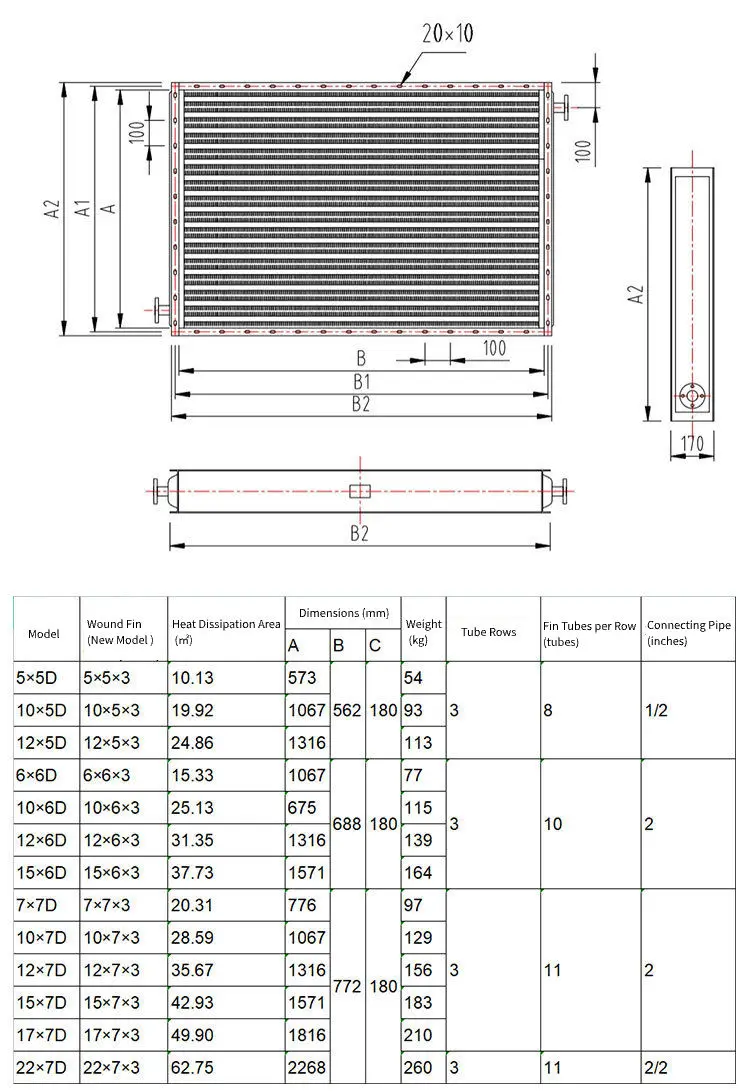

We can provide detailed drawing after your order.We can also provide Custom services.

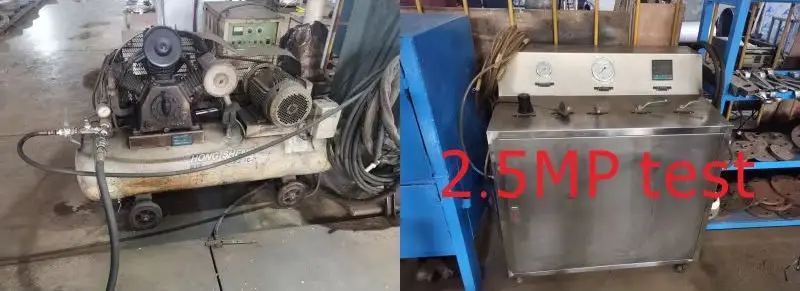

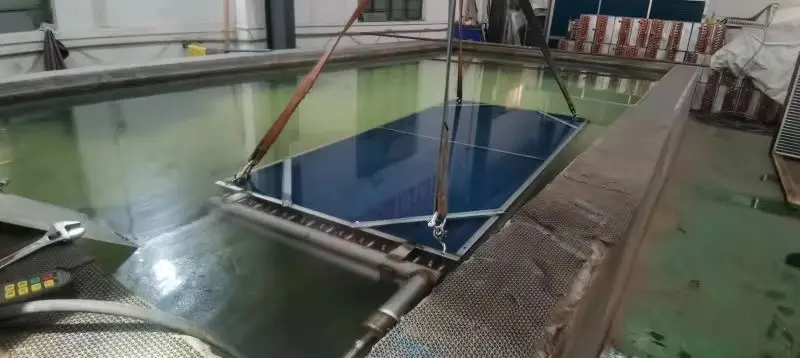

All air heat exchangers undergo a rigorous pressure test: each unit is tested twice at 2.5 MPa and must hold the pressure for at least 15 minutes to verify pressure resistance and ensure no leakage.
