Sieving Machine

Overview

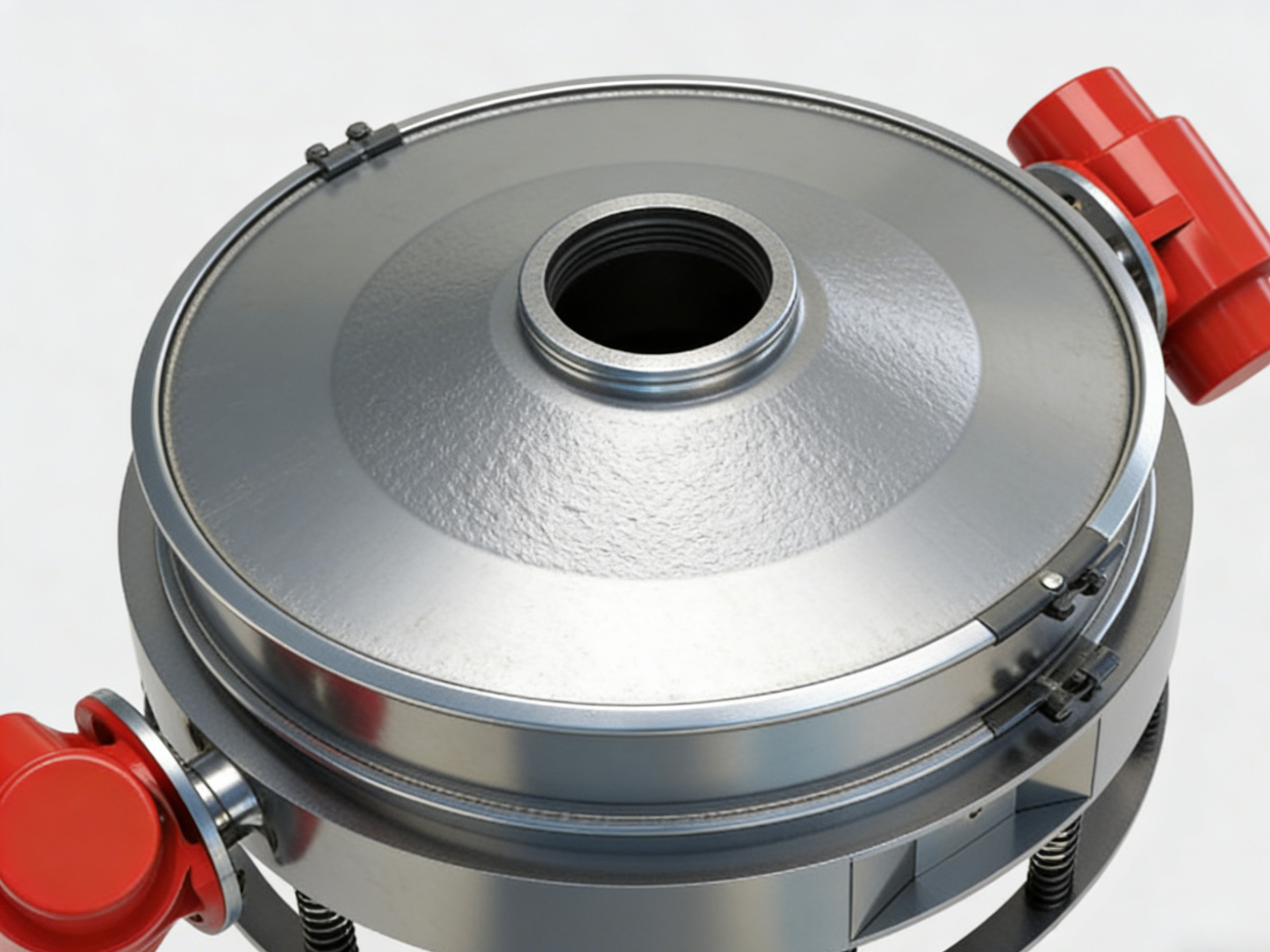

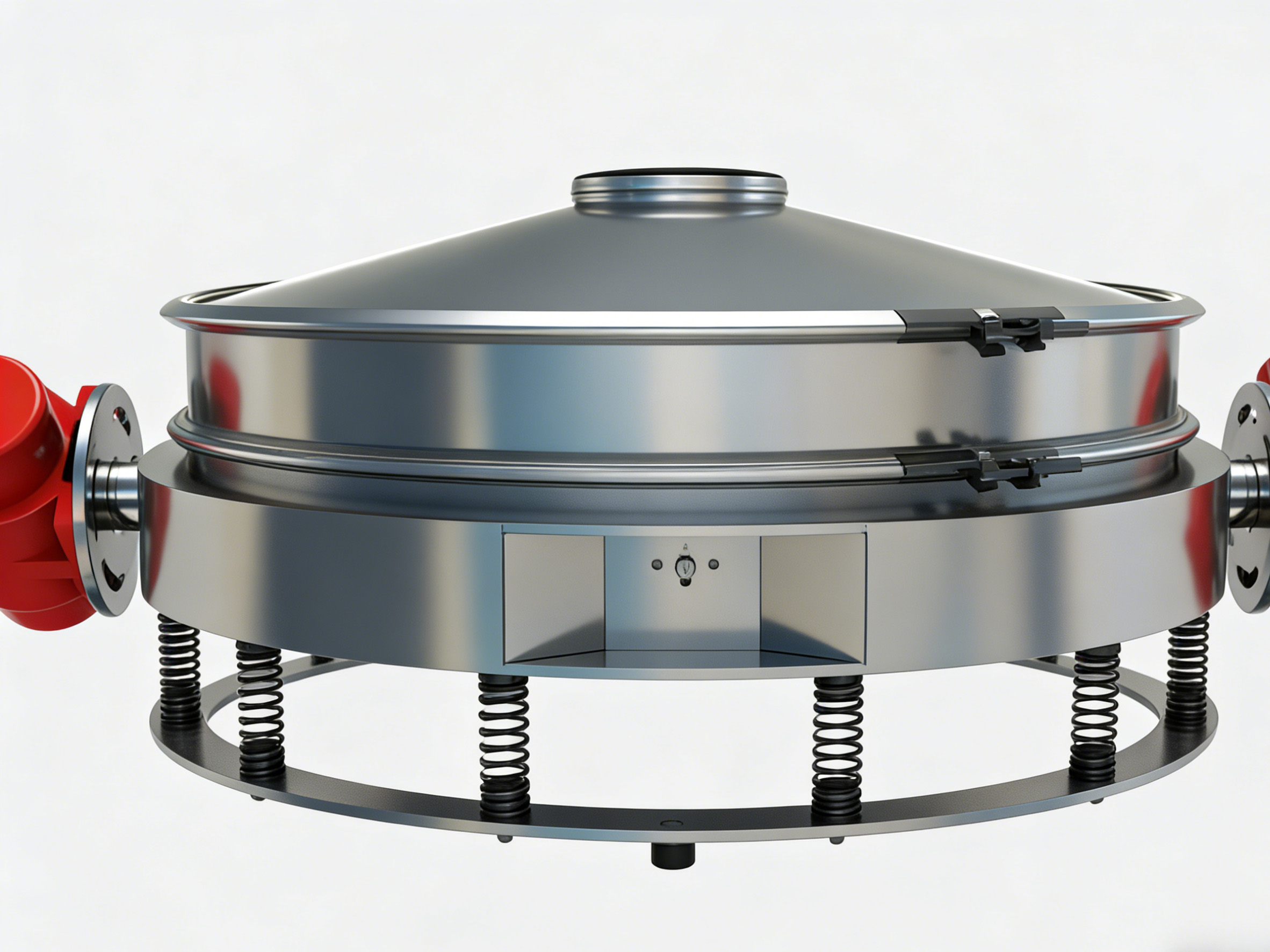

XUANYU Compact Sieving Machine is a high-efficiency, space-saving screening equipment independently developed by Henan Xuanyu Technology Co., Ltd. Designed for scenarios with limited installation space, this machine integrates the core functions of traditional sieving equipment into a compact structure, without compromising screening efficiency and precision. It is widely applicable to the screening, classification and impurity removal of powder, granular and small-batch viscous materials in food, pharmaceutical, chemical, electronic, plastic and other industries, providing flexible and reliable material processing solutions for small and medium-sized production lines, laboratories and workshops with limited space.

Working Principle

Adopting a high-performance mini vertical vibration motor as the excitation source, the XUANYU Compact Sieving Machine generates stable horizontal, vertical and inclined composite vibration through the eccentric weights installed at the upper and lower ends of the motor. This vibration is efficiently transmitted to the screen surface, driving materials to move in a regular involute trajectory on the screen—ensuring full contact between materials and the screen mesh, avoiding material accumulation, and improving screening speed. Materials larger than the screen aperture are discharged from the upper discharge port, while materials smaller than the screen aperture fall to the lower layer (or directly discharged) to complete the screening process. The vibration amplitude and trajectory can be flexibly adjusted by modifying the phase angle of the eccentric weights, adapting to different material properties and screening requirements.

Structural Features & Composition

The machine features a simplified, integrated structural design, with key components optimized for miniaturization and durability, ensuring stable operation while reducing overall volume. Its main components and features are as follows:

• Integrated Base: Small in size, heavy-duty steel structure, stable placement, no need for complex foundation installation, easy to move and fix.

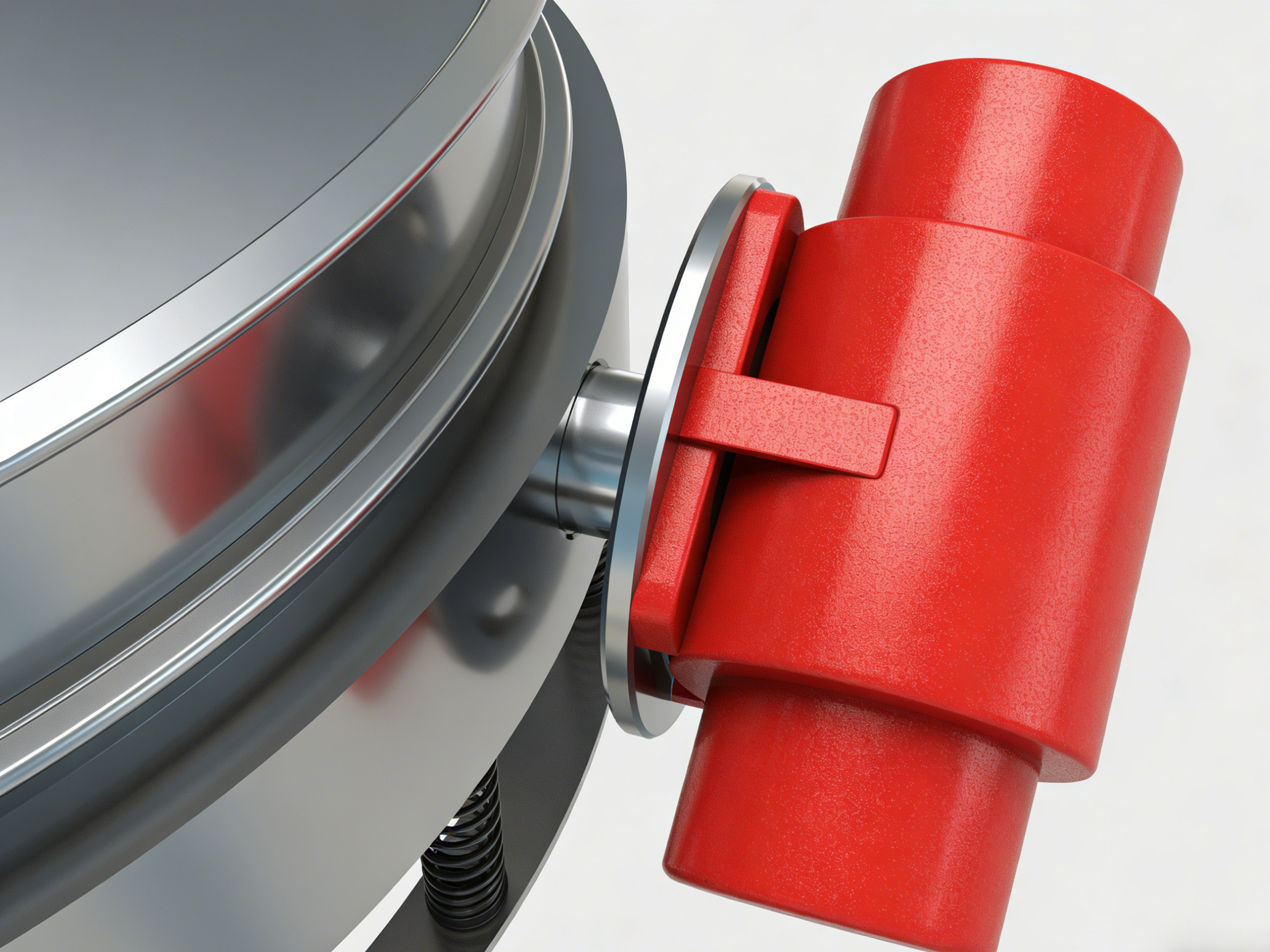

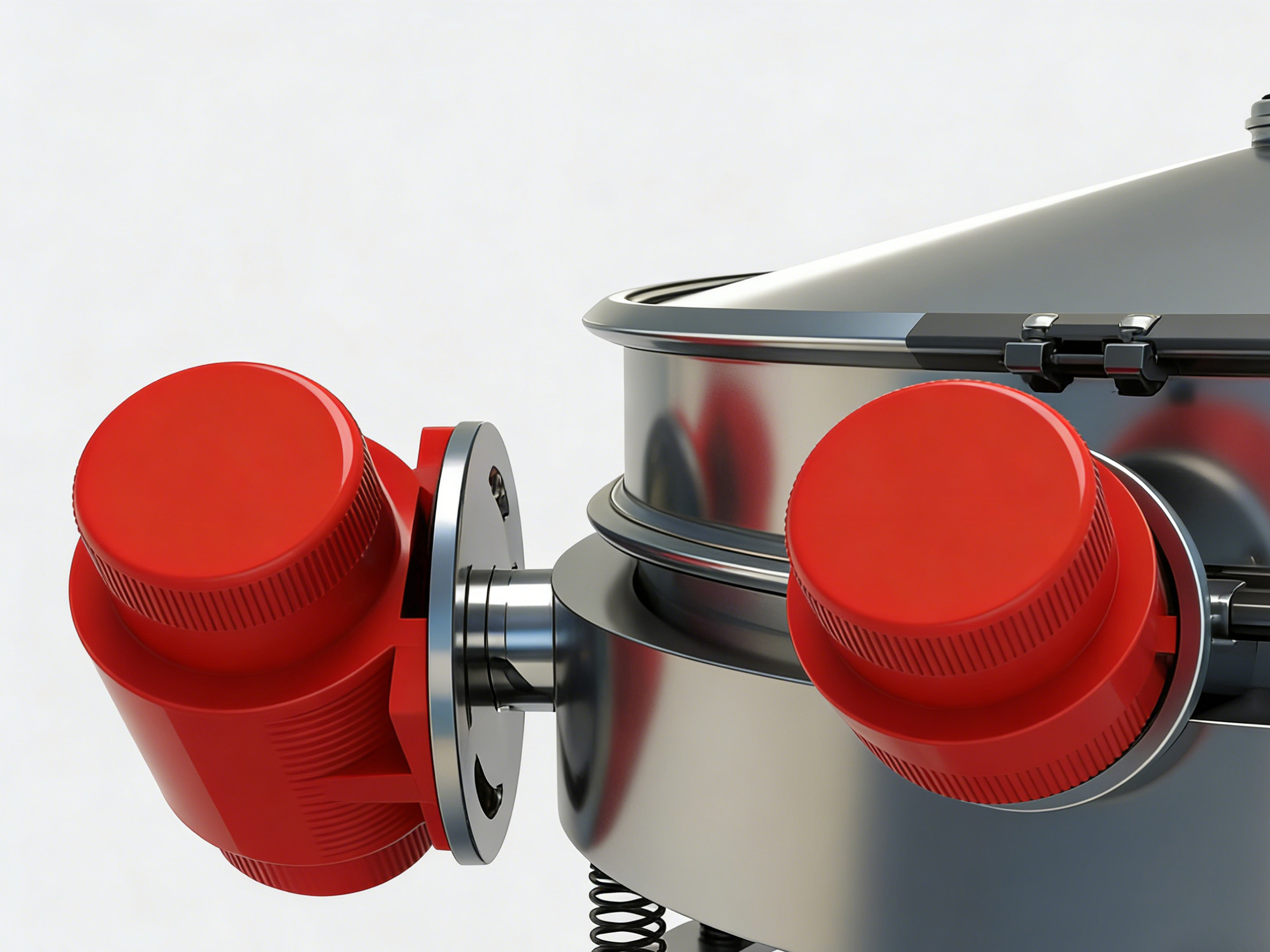

• Mini Vibration Motor: Core power component, small in size, low noise, low power consumption, stable performance and long service life, suitable for long-term continuous operation.
• Compact Screen Frame: Detachable design, single-layer or double-layer optional, made of high-strength stainless steel, light weight and easy to disassemble, clean and maintain.
• High-Precision Screen Mesh: Commonly used 304/316L stainless steel woven mesh, optional aperture from 0.028mm (500 meshes) to 30mm, high screening precision, wear-resistant and corrosion-resistant.
• Sealed Dust Cover: Stainless steel material, full-sealed design, effectively preventing dust emission and material leakage, meeting environmental protection and hygiene standards (especially suitable for food and pharmaceutical industries).

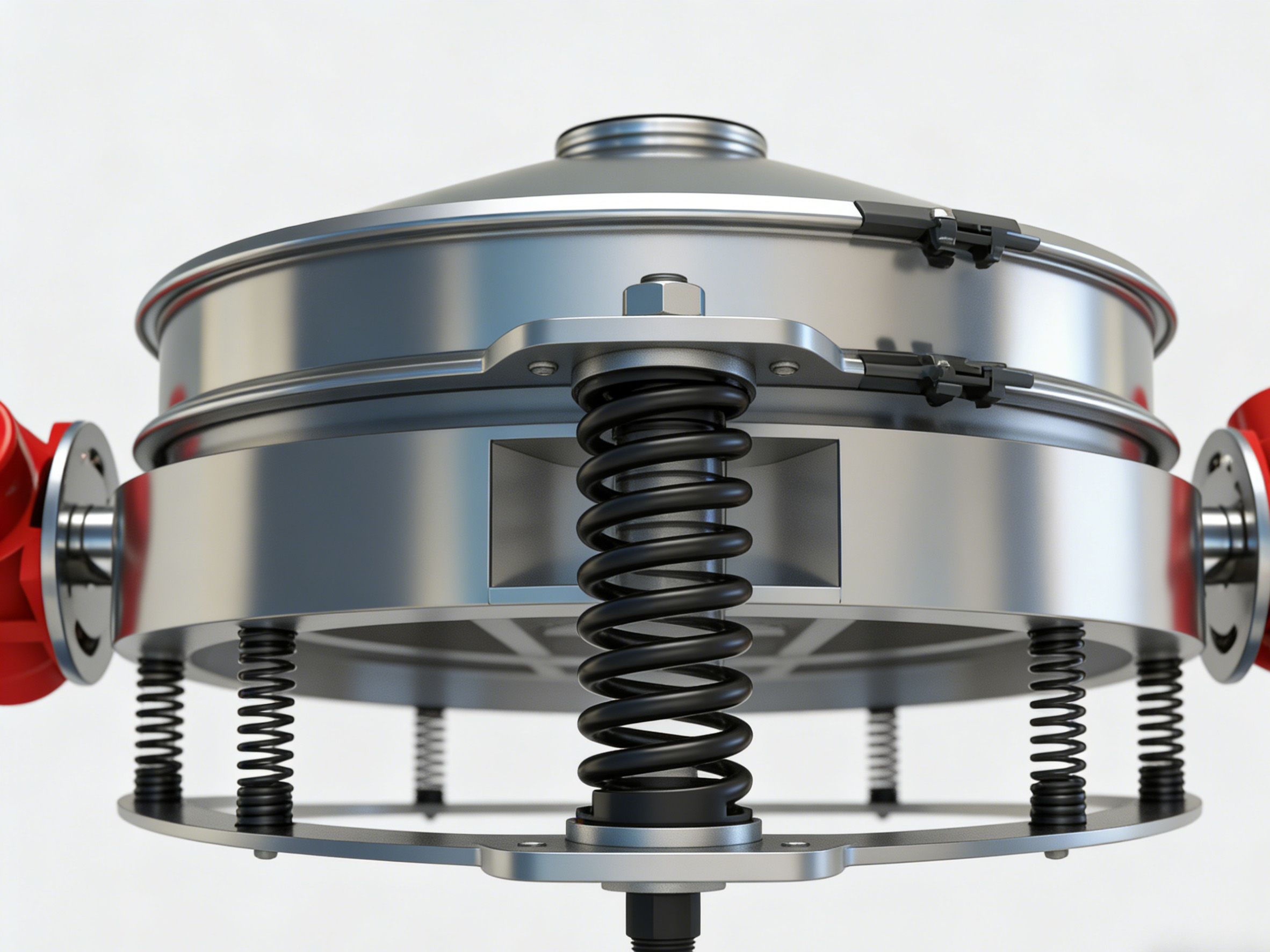

• Shock-Absorbing Pad: Installed at the bottom of the base, reducing the impact of vibration on the surrounding environment and equipment, ensuring stable operation.

Core Advantages

• Space-Saving Compact Design: Small overall volume (occupying 50%-70% less space than traditional sieving machines), lightweight, easy to install in narrow workshops, laboratories or mobile production lines, and convenient for movement and storage.
• High Efficiency & Precision: Despite its compact size, it maintains high screening efficiency (up to 95%) and precision (up to 500 meshes), ensuring thorough material classification and impurity removal, and meeting high-standard production requirements.
• Easy Operation & Maintenance: Simple structure, one-key start, no complex operation steps; detachable screen frame and screen mesh, screen change can be completed in 2-3 minutes, daily cleaning and maintenance are convenient, reducing labor costs.
• Low Noise & Energy Saving: The mini vibration motor adopts energy-saving design, low power consumption (0.25-1.1kW), low noise (≤65dB), creating a quiet and energy-saving working environment.
• Wide Adaptability: Suitable for small-batch, multi-variety material screening, can handle powder, granular and low-viscosity materials, and is widely used in food, medicine, electronics and other industries with strict space and hygiene requirements.
• Durable & Reliable: Key components are made of high-quality stainless steel and alloy materials, corrosion-resistant, wear-resistant, low failure rate, and can adapt to long-term continuous operation in harsh working environments.

Application Scenarios

• Food Industry: Screening of milk powder, sugar, salt, condiments, cereal powder, etc., ensuring product purity and uniformity, meeting food hygiene standards.
• Pharmaceutical Industry: Classification and impurity removal of western medicine powder, Chinese medicine particles, pharmaceutical excipients, etc., complying with GMP standards.
• Chemical & Electronic Industry: Screening of resin powder, pigment, plastic particles, electronic powder, etc., ensuring product particle size consistency and avoiding impurities affecting product quality.
• Laboratories & R&D Institutions: Small-batch material screening and testing, suitable for scientific research, formula debugging and small-scale trial production.
• Other Fields: Screening of cosmetics raw materials, feed additives, metal powder, etc., adapting to various small-space, small-batch screening needs.

Technical Parameters (Customizable)

Model	Screen Diameter (mm)	Number of Layers	Mesh Size (mm)	Capacity (kg/h)	Power (kW)	Overall Dimension (L×W×H, mm)	Weight (kg)
XY-400	400	1-2	0.028-30	50-500	0.25-0.55	500×500×800	65
XY-600	600	1-2	0.028-30	100-1000	0.55-0.75	700×700×950	95
XY-800	800	1-3	0.028-30	200-1800	0.75-1.1	900×900×1100	130

Customization Services

In order to meet the diverse needs of different customers, XUANYU provides personalized customization services for compact sieving machines:

• Size & Capacity Customization: Adjust the overall size and screening capacity according to the customer’s installation space and production demand.
• Material Customization: The parts in contact with materials can be made of 316L stainless steel, PTFE and other materials to meet the requirements of corrosion resistance, high temperature resistance and high hygiene level.
• Screen Mesh Customization: Customize screen meshes of different materials (stainless steel, nylon, polyester) and apertures according to the particle size of the screened materials.
• Special Function Customization: Equip with screen cleaning device (to solve screen blockage), anti-static device, heating device, etc., adapting to special material screening needs.
• Provide a one-year free warranty service, during which damaged parts (excluding man-made damage) are replaced free of charge.
• 24-hour online technical consultation, timely solve the problems encountered by customers in the process of use.
• Provide detailed operation and maintenance manuals, and conduct online training for operators if needed.
• Long-term supply of wearing parts (screen mesh, shock-absorbing pad, etc.) at preferential prices to ensure the continuous operation of equipment.

XUANYU Compact Sieving Machine, with its compact design, high efficiency, reliability and flexibility, breaks through the space limitation of traditional sieving equipment, becoming the ideal choice for small-space, high-standard screening scenarios, helping customers reduce production space occupation and improve production efficiency and product quality.
